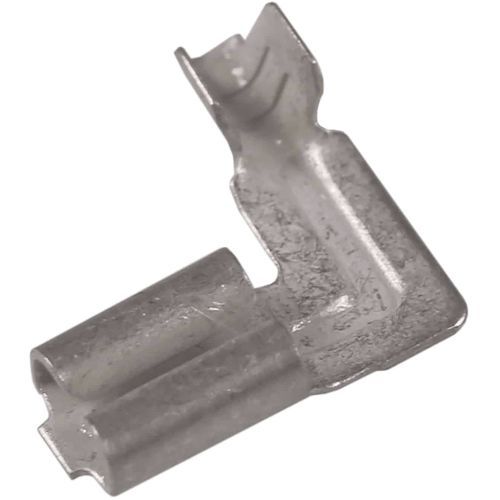

Female solderless terminal B1003FLSV5quick-disconnectsleeveelbow
Add to favorites
Compare this product
Characteristics
- Connection type
- female, quick-disconnect, sleeve
- Configuration
- elbow
- Insulation
- non-insulated
- Material
- copper, tin, brass
- Lenght
9.3 mm
(0.37 in)
Description
W (mm): 3.8
e (mm): 4.9
t (mm) - palm thickness: 0.3
s (mm) - strip length: 7
Tab Size: 2,8x0,5
AWG/MCM Cu: 20 - 18 AWG
mm² Cu: 0,5-1
Material: Brass
AWG-range, Min: 20
AWG-range, Max: 18
Nominal cross section, Min (mm²): 0.5
Nominal cross section, Max (mm²): 1
