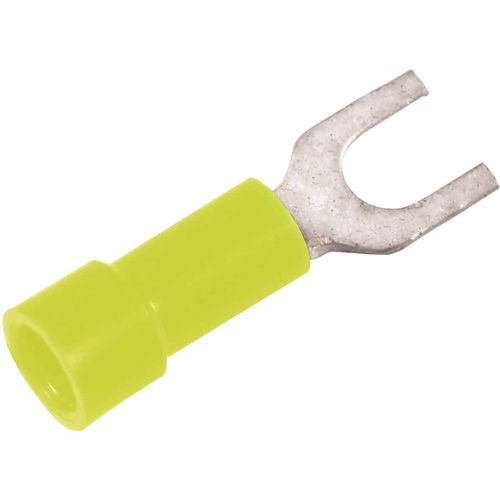

Fork solderless terminal A0532Gtubularinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Connection type
- fork
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper, tin, PA, PC
- Other characteristics
- halogen-free
- Lenght
15 mm, 18 mm
(0.59 in, 0.71 in)- Inner diameter
3.2 mm
(0.13 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
Insulation halogen-free PA, not Easy-entry.
Pre-insulated fork terminal for 0.1-0.5 mm² cable. Used with certified tool DSA0115
W (mm): 5.5
t (mm) - palm thickness: 0.5
s (mm) - strip length: 6
Insulation material: PA
Insulation colour: Light yellow (insulated terminals)
Material: Cu, Cu/Sn
Screw: M3
AWG/MCM Cu: 26 - 20 AWG
mm² Cu: 0,1-0,5
