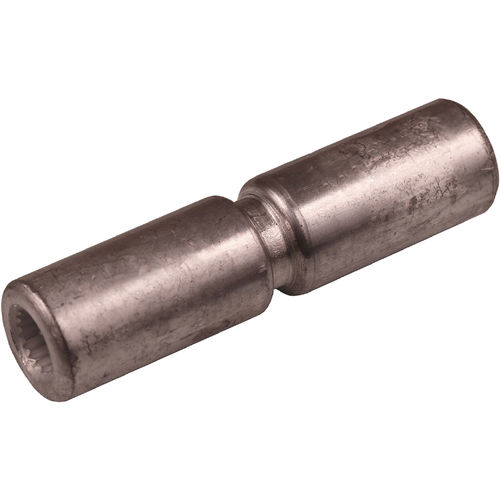

Data connector AS5095crimpthrough-holealuminium
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- crimp, through-hole
- Material
- aluminium
Description
d (mm): 14
D (mm): 25
L (mm): 130
s (mm) - strip length: 57
mm² Stranded Al: 50-95
mm² Solid Al: 50-95
Oil stop/centre bar: Yes
Voltage level: 0,6/1 kV
Material: Aluminium
Cross section shape: Round/sector-shaped
Reduced Al nominal cross section (mm²): 95
Nominal cross section aluminium, SE, Min (mm²): 50
Nominal cross section aluminium, SE, Max (mm²): 95
Nominal cross section aluminium, RM/SM, Max (mm²): 95
