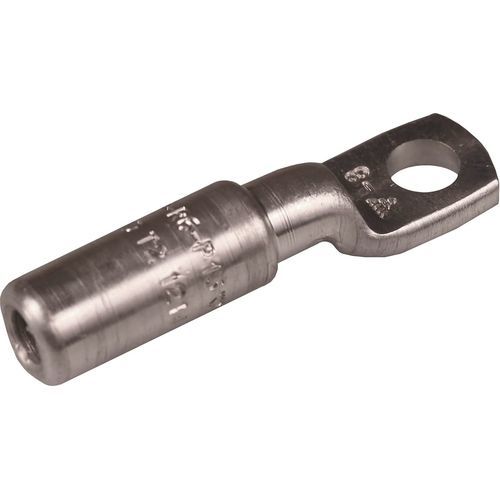

Crimp solderless terminal AK16-6tubularnon-insulatedaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp
- Configuration
- tubular
- Insulation
- non-insulated
- Material
- aluminum
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 16 mm², or for solid Al cable 25 (16) mm² with an M6 hole in the palm. Used with Elpress certified systems V1300 or V250.
W (mm): 16
N (mm): 8.5
N1 (mm): 9
P (mm): 17.5
d (mm): 5.9
D (mm): 13
L (mm): 61
t (mm) - palm thickness: 5
s (mm) - strip length: 29
Screw: M6
AWG/MCM Stranded Al: 6 AWG
AWG/MCM Solid Al: 4 AWG
mm² Stranded Al: 16
mm² Solid Al: 25
