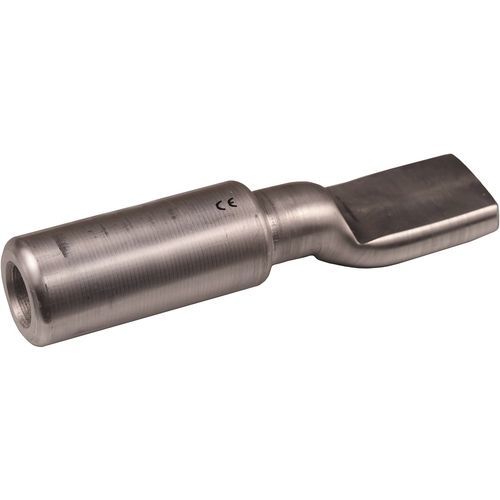

Crimp solderless terminal AK630A-2aluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp
- Material
- aluminum
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 630 mm² with undrilled palm. Used with Elpress certified system V250.
W (mm): 70
P (mm): 80
t (mm) - palm thickness: 16
s (mm) - strip length: 110
AWG/MCM Stranded Al: 1250 MCM
mm² Stranded Al: 630
