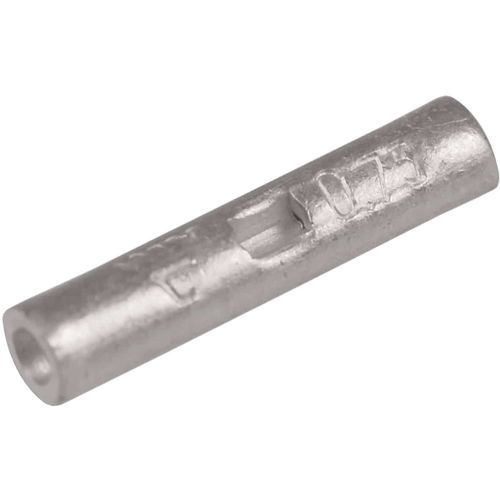

Data connector KS0,75through-holecoppertin
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- through-hole
- Material
- copper, tin
- Product applications
- cable
- Other characteristics
- flexible
Description
Material: Cu 99.95%, tin plated Cu/Sn.
Inspection hole and int. cable stop.
For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
Uninsulated through connector for multi-stranded (class 5) and stranded (class 2) Cu conductors, 0.75 mm². Used with certified tool DKB0325 or DKB0760.
s (mm) - strip length: 7
AWG/MCM Cu: (22) - 18 AWG
mm² Cu: 0,75
Catalogs
No catalogs are available for this product.
