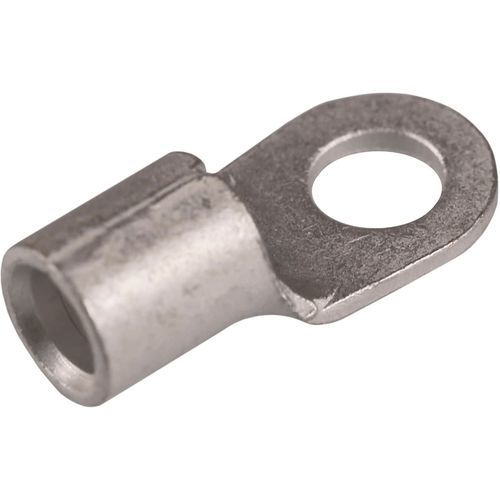

Ring solderless terminal B10-5Rcrimptubularnon-insulated
Add to favorites
Compare this product
Characteristics
- Connection type
- ring, crimp
- Configuration
- tubular
- Insulation
- non-insulated
- Material
- copper
Description
dimensions according to DIN 46234
material: 99.9% Cu, tin plated (Cu/Sn)
Sheet metal terminal for 10 mm² copper conductors with an M5 hole in the palm. Used with Elpress certified systems V600, V1300 or V250.
W (mm): 10
t (mm) - palm thickness: 1.1
Screw: M5
Marking: 10
AWG/MCM Cu: 8 AWG
mm² Cu: 10
