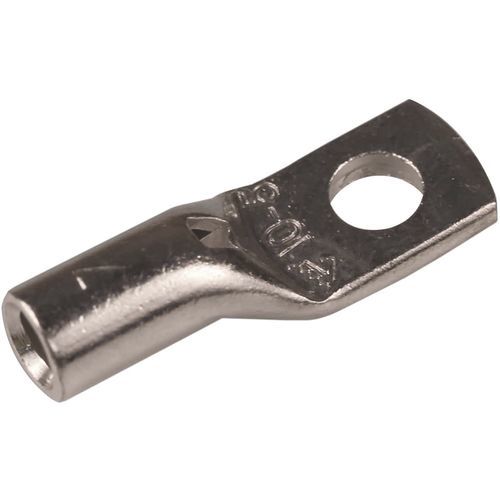

Sleeve solderless terminal KRT10-5tubularcoppertin
Add to favorites
Compare this product
Characteristics
- Connection type
- sleeve
- Configuration
- tubular
- Material
- copper, tin
- Lenght
29 mm
(1.14 in)- Inner diameter
4.5 mm
(0.18 in)- Outer diameter
7 mm
(0.28 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn.
Inspection hole.
For stranded (class 2) Cu conductors.
Example of marking KRT: 16 (neck) Elpress logotype 70 10 (palm)
16 = Die No. 70 = mm² 10 = palm hole for M10
Tube terminal type KRT for stranded (class 2) Cu conductors, 10 mm², with an M5 hole in the palm. Used with Elpress certified systems V600, V1300 or V250.
W (mm): 10
N (mm): 6
N1 (mm): 8
P (mm): 14
t (mm) - palm thickness: 2.4
s (mm) - strip length: 11
Screw: M5
Inspection hole: Yes
AWG/MCM Cu: 8 AWG
mm² Cu: 10
