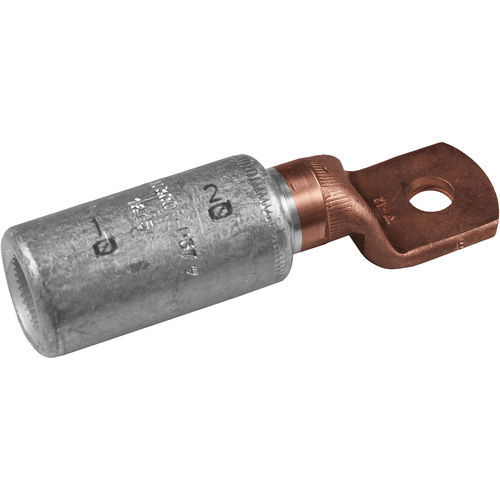

Crimp solderless terminal AKK300B-12screwcopperaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, screw
- Material
- copper, aluminum
- Other characteristics
- bi-metal
Description
Used for connection of Al conductors for apparatus outlets and busbars of Cu, etc.
Two crimps are needed.
AlCu terminal for stranded Al cable 300 mm², with an M12 hole in the palm. Used with Elpress certified system V1300.
W (mm): 37
N (mm): 18.5
N1 (mm): 18.5
P (mm): 37
d (mm): 22.3
D (mm): 37
t (mm) - palm thickness: 6.7
s (mm) - strip length: 68
Screw: M12
AWG/MCM Stranded Al: 550 MCM
mm² Stranded Al: 300
