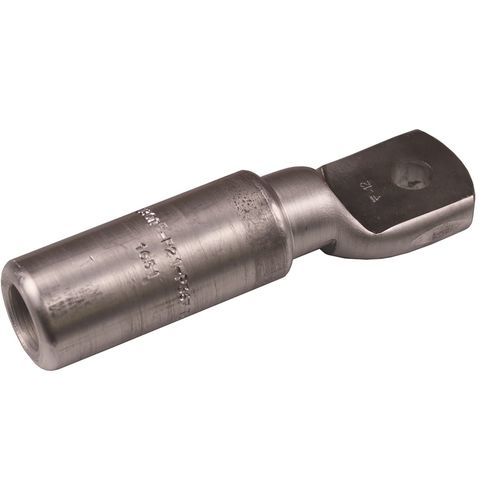

Crimp solderless terminal AK300-12screwaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, screw
- Material
- aluminum
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 300 mm² with an M12 hole in the palm. Used with Elpress certified system V250.
W (mm): 41
N (mm): 18
N1 (mm): 25
P (mm): 43
t (mm) - palm thickness: 14
s (mm) - strip length: 83
Screw: M12
AWG/MCM Stranded Al: 550 MCM
mm² Stranded Al: 300
