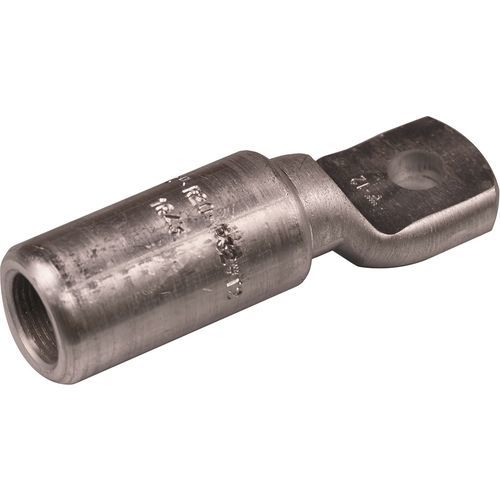

Crimp solderless terminal AK240-12screwaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, screw
- Material
- aluminum
- Lenght
113 mm
(4.45 in)- Outer diameter
32 mm
(1.26 in)
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 240 mm² with an M12 hole in the palm. Used with Elpress certified systems V1300 or V250.
W (mm): 35
N (mm): 16
N1 (mm): 18.5
P (mm): 34.5
t (mm) - palm thickness: 13
s (mm) - strip length: 61
Screw: M12
AWG/MCM Stranded Al: 450 MCM
mm² Stranded Al: 240
