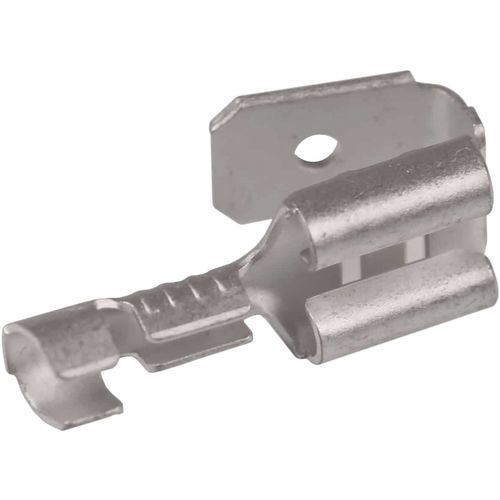

Sleeve solderless terminal B1507FLSHflatbrasstin
Add to favorites
Compare this product
Characteristics
- Connection type
- sleeve
- Configuration
- flat
- Material
- tin, brass
- Lenght
20 mm
(0.79 in)
Description
e (mm): 8
t (mm) - palm thickness: 0.4
s (mm) - strip length: 7
Tab Size: 6,3x0,8
AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
Insulation: Not isolated
Colour insulation: Other
Plug dimensions: Flat 6.3x0.8 mm
Material: Brass
AWG-range, Min: 20
AWG-range, Max: 16
Nominal cross section, Min (mm²): 0.5
Nominal cross section, Max (mm²): 1.5
Material insulation: Other
