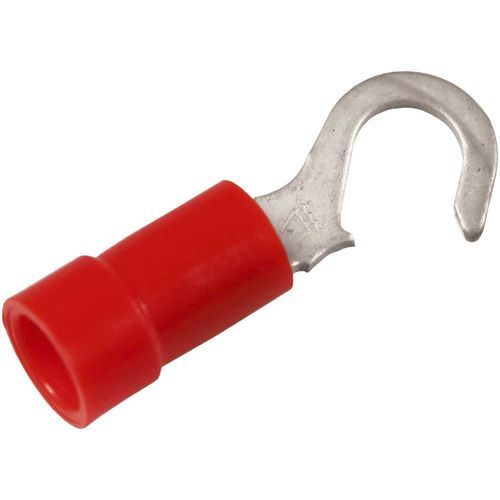

Hook solderless terminal A1543Kforkscrewtubular
Add to favorites
Compare this product
Characteristics
- Connection type
- fork, screw, hook
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper, tin, PC
- Other characteristics
- halogen-free
- Lenght
17 mm, 20.5 mm
(0.67 in, 0.81 in)- Inner diameter
4 mm
(0.16 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn, brazed neck.
Insulation halogen-free PC, Easy-entry.
Pre-insulated fork terminal for 0.5-1.5 mm² cable. Used with certified tool GSA0760.
W (mm): 7
t (mm) - palm thickness: 0.7
s (mm) - strip length: 7
Insulation material: PC
Insulation colour: Red (insulated terminals)
Material: Cu, Cu/Sn
Easy-entry: Yes
Screw: M4
AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
