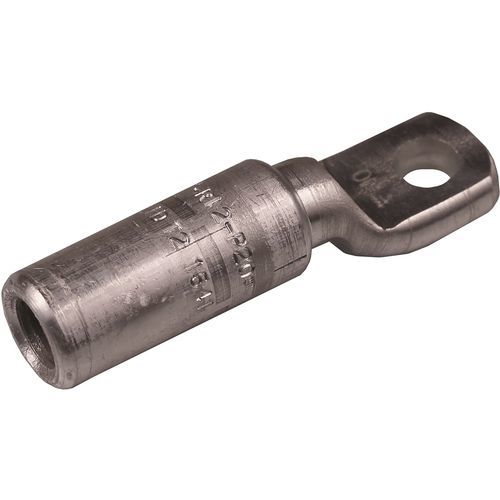

Crimp solderless terminal AK70-10screwaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, screw
- Material
- aluminum
- Lenght
85 mm
(3.35 in)- Outer diameter
20 mm
(0.79 in)
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 70 mm², or for solid Al cable 95 mm² with an M10 hole in the palm. Used with Elpress certified systems V1300 or V250.
W (mm): 22
N (mm): 11
N1 (mm): 14
P (mm): 25
t (mm) - palm thickness: 7.5
s (mm) - strip length: 45
Screw: M10
AWG/MCM Stranded Al: 2/0 AWG
AWG/MCM Solid Al: 3/0 AWG
mm² Stranded Al: 70
mm² Solid Al: 95
