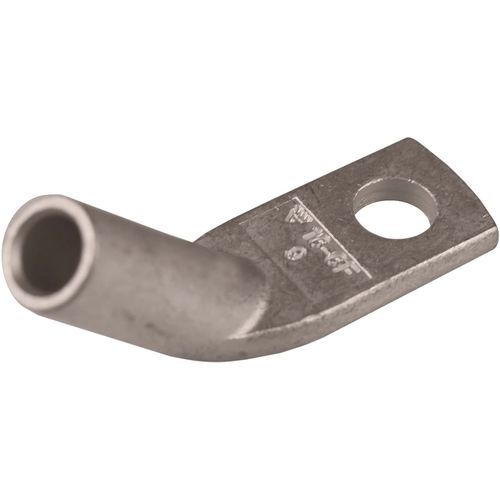

Tubular solderless terminal KR10-6-45GR

coppertin

Material: Cu 99.95%, tin plated Cu/Sn. Inspection hole For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended. Example of marking KRF: 17 (neck) Elpress logo 70 10F (palm) 17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors. Angled tube terminal 45° for multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 10 mm², with an M6 hole in the palm. Used with Elpress certified systems V600, V1300, V250. A (mm): 19 W (mm): 13 N (mm): 6.5 N1 (mm): 11.5 P (mm): 18 t (mm) - palm thickness: 2.3 s (mm) - strip length: 11 Screw: M6 Angle (°): 45 Inspection hole: Yes AWG/MCM Cu: 8 AWG mm² Cu: 10
