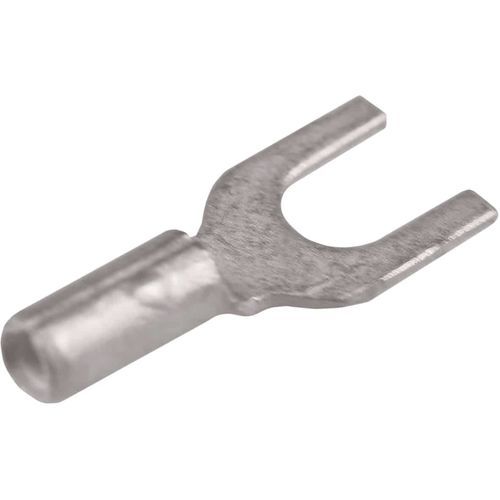

Sleeve solderless terminal B0832Gforkscrewtubular
Add to favorites
Compare this product
Characteristics
- Connection type
- fork, screw, sleeve
- Configuration
- tubular
- Insulation
- non-insulated
- Material
- copper, tin
- Lenght
13 mm
(0.51 in)- Inner diameter
1.3 mm
(0.05 in)
Description
W (mm): 5.5
t (mm) - palm thickness: 0.5
s (mm) - strip length: 7
Screw: M3
Neck type: Brazed
AWG/MCM Cu: 24 - 18 AWG
mm² Cu: 0,25-0,75
Surface protection: Tin plated
Insulation: EV000494
Flange shape: Fork shape
Material: Copper
Bolt dimension metric (M): 3
AWG-range, Min: 24
AWG-range, Max: 18
Nominal cross section, Min (mm²): 0.25
Nominal cross section, Max (mm²): 0.75
Suitable for fine strand conductors: Yes
Suitable for stranded conductors: Yes
Suitable for round conductors: Yes
Sleeve form: Short
