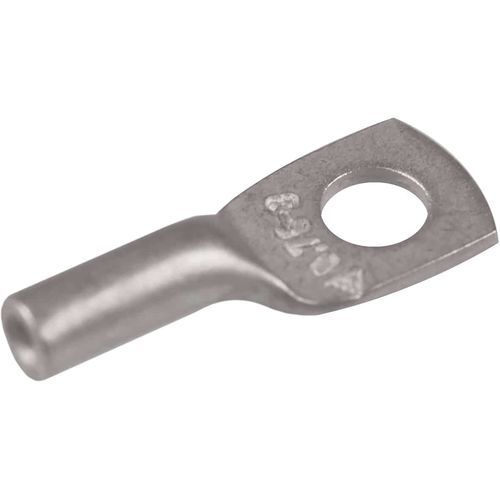

Sleeve solderless terminal KR0,75-3ringscrewtubular
Add to favorites
Compare this product
Characteristics
- Connection type
- ring, screw, sleeve
- Configuration
- tubular
- Material
- tin
- Lenght
17 mm
(0.67 in)- Inner diameter
1.3 mm
(0.05 in)- Outer diameter
2.8 mm
(0.11 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn.
For multi-stranded (class 5) and stranded (class 2) Cu conductors.
Without inspection hole.
Examples of palm marking KR: 10-10
10 = mm² 10 = Palm hole for M10
Tube terminal for multi-stranded (class 5) and stranded (class 2) Cu-conductors (acc. to IEC 60228), 0.75 mm², with an M3 hole in the palm. Used with certified tool DKB0325, DKB0760.
W (mm): 6
N (mm): 3.2
N1 (mm): 3.8
P (mm): 7
t (mm) - palm thickness: 0.85
s (mm) - strip length: 7.5
Screw: M3
AWG/MCM Cu: 18 AWG
mm² Cu: 0,75
