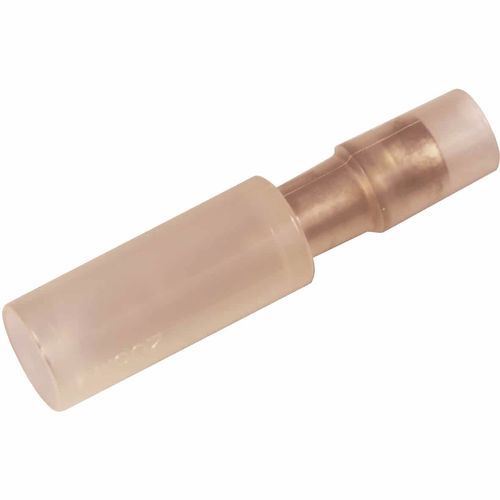

Sleeve solderless terminal A0802HAbullettubularinsulated
Add to favorites
Compare this product
Characteristics
- Connection type
- bullet, sleeve
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper, tin, brass, PA
- Other characteristics
- halogen-free
- Lenght
26 mm
(1.02 in)- Inner diameter
3.1 mm
(0.12 in)
Description
Materials: brass/Cu, tin plated Cu/Sn.
Insulation halogen-free PA, not Easy-entry.
Pre-insulated bullet for 0.25-0.75 mm² cable. Used with certified tool DSA0115.
s (mm) - strip length: 7
Insulation material: PA
Insulation colour: Transparent (insulated terminals)
Material: Brass/Cu, Cu/Sn
Bullet ø (mm): 2
Neck type: Reinforcement sleeve
AWG/MCM Cu: 24 - 18 AWG
mm² Cu: 0,25-0,75
