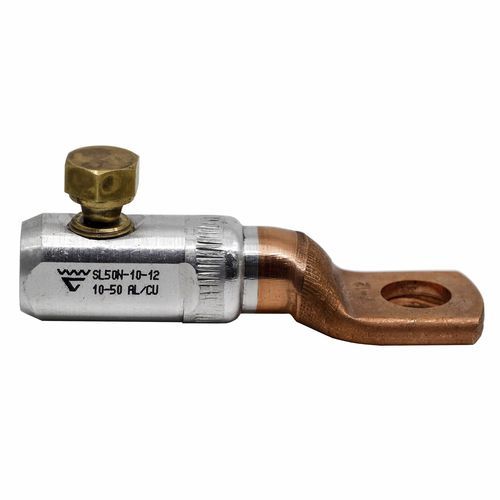

Data connector SL50N-10-12

roundflatscrew

shearbolt material: brass for minimum friction threaded shear-off shearbolts for easy handling voltage range 1 kV meets the requirements of IEC standard 61238-1:2003 the terminals are of the bimetallic type for best functionality Shearbolt terminal 1 kV that is suitable for both Al and Cu class 1 and class 2 cable. Round cable 10-50 mm², sector shaped cable 10-50 mm². Suitable for both M10 and M12, reduction washer and flat washer are included when ordering. a (mm): 13 W (mm): 25.5 N (mm): 12.5 d (mm): 12 D (mm): 20/17,3 L1 (mm): 44 L (mm): 87 t (mm) - palm thickness: 5.9 s (mm) - strip length: 32 Screw: M10, M12 Max voltage (kV): 1 Screen conductor (mm²): 10-35 Cable type Round (mm²): 10-50 Cable type Sector (mm²): 10-50
