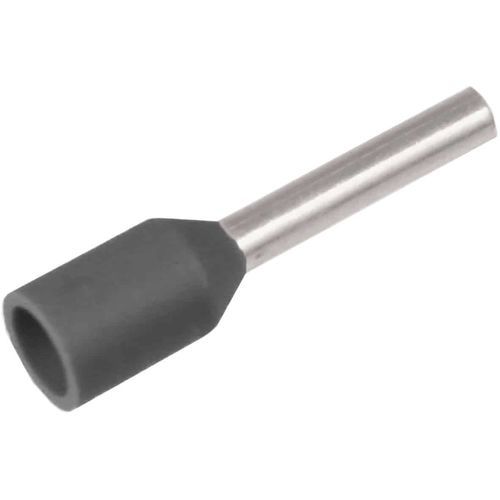

Sleeve solderless terminal A0,14-6ETDtubularinsulatedpolypropylene
Add to favorites
Compare this product
Characteristics
- Connection type
- sleeve
- Configuration
- tubular
- Insulation
- insulated
- Material
- tin, polypropylene
- Lenght
6 mm, 10 mm
(0.24 in, 0.39 in)- Inner diameter
1.9 mm
(0.07 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn, CSA approved.
Polypropylene insulation, colour code DIN46228.
Pre-insulated end terminal ETD, 0.14 mm². Used with certified tool PEB0110T.
s (mm) - strip length: 8
Working temperature, Min (°C): -5
Working temperature, Max (°C): 105
Insulation material: PP
Insulation colour: Grey (end sleeves)
Material: Cu, Cu/Sn
AWG/MCM Cu: 26 AWG
mm² Cu: 0,14
