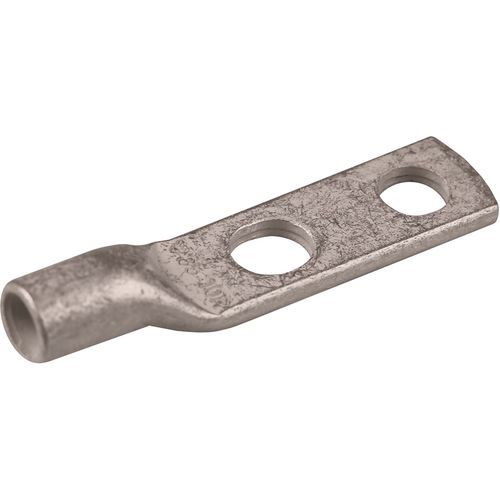

Crimp solderless terminal KRF35-10X2-24-26quick-disconnecttubularnon-insulated
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, quick-disconnect
- Configuration
- tubular
- Insulation
- non-insulated
- Material
- copper, tin
Description
Material: Cu 99.95%, tin plated Cu/Sn.
Inspection hole
For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
UL-approved.
Example of marking KRF: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.
2 holed tube terminal for multi-stranded (class 5) and stranded (class 2) Cu-conductors (acc. to IEC 60228), 35 mm², with two M10 holes in the palm. Used with Elpress certified systems V600, V1300 or V250.
W (mm): 18
N (mm): 11
N1 (mm): 16
P (mm): 52
cc (mm): 25
O (mm): 12.5
f (mm): 1
t (mm) - palm thickness: 3.9
s (mm) - strip length: 16
Screw: M10x2
Inspection hole: Yes
AWG/MCM Cu: 2 AWG
mm² Cu: 35
