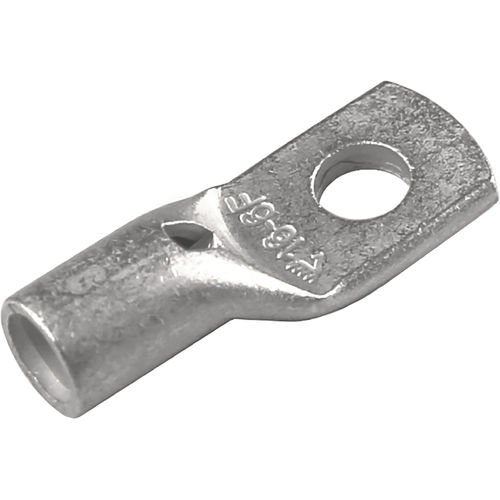

Screw solderless terminal KRF16-6tubularcoppertin
Add to favorites
Compare this product
Characteristics
- Connection type
- screw
- Configuration
- tubular
- Material
- copper, tin
- Lenght
34 mm
(1.34 in)- Inner diameter
6 mm
(0.24 in)- Outer diameter
9 mm
(0.35 in)
Description
Material: Cu 99.95%, tin plated Cu/Sn.
With inspection holes.
For stranded (class 2), multi-stranded (class 5) and very flexible (class 6) Cu conductors according to IEC 60228, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
Example of marking KRF: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded, flexible and very flexible conductors.
W (mm): 13
N (mm): 8
N1 (mm): 9
P (mm): 17
f (mm): 1.1
t (mm) - palm thickness: 2.9
s (mm) - strip length: 11
Screw: M6
Inspection hole: Yes
AWG/MCM Cu: 6 AWG
mm² Cu: 16
