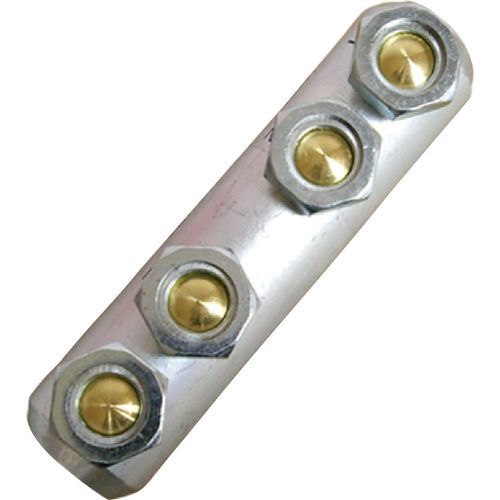

Data connector SC95R95Sroundscrewvoltage
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- round
- Connection type
- screw
- Electrical characteristics
- voltage
- Material
- copper, brass
- Product applications
- cable, wall
- Other characteristics
- IEC
- Voltage
Max.: 36 kV
Min.: 1 kV
Description
shearbolt material: brass, for minimum friction
reversible shear-off shearbolts
voltage range: 1-36 kV
with partition wall
meets the requirements of IEC standard 61238-1:2003
Shearbolt connector 1 -36 kV suitable for both Al and Cu at class 1 and class 2 cable. Round cable 50-95 mm², sector shaped cable 50-95 mm². When splicing screen conductors 16-57 mm², filler piece SC95N/PEN is used for splicing the copper screen of the cable.
