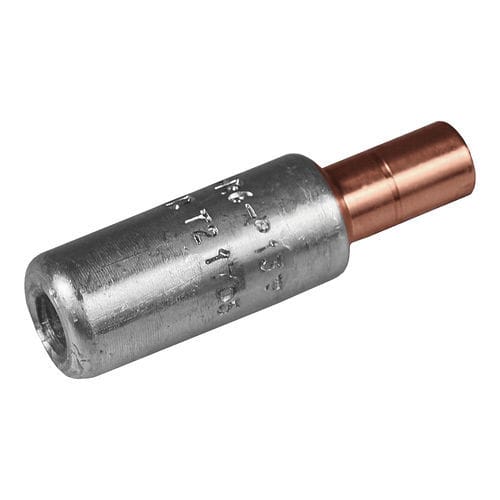

Pin solderless terminal AKS16-10S

cylindricalnon-insulatedbi-metal

Transition joints from stranded Al conductors to solid Cu conductors 10 mm² (e.g. Excel, Excelett). Two crimps are needed for both Al and Cu. AlCu through connector, from Al conductor to Cu conductor for stranded Al-cable 16 mm², or for solid Al cable 25 (16) mm², to solid Cu cable 10 mm². When hexagonal crimping Cu conductors, the dies are placed in the middle between the marking groove and the outer edge. Used with Elpress certified systems V1300, V250. s1 (mm): 33 d (mm): 5.9 D (mm): 13 L (mm): 64.5 d1 (mm): 4.5 D1 (mm): 7 s (mm) - strip length: 29 AWG/MCM Stranded Al: 6 AWG AWG/MCM Solid Al: 4 AWG AWG/MCM Cu: 8 AWG mm² Stranded Al: 16 mm² Solid Al: 25 mm² Cu: 10
