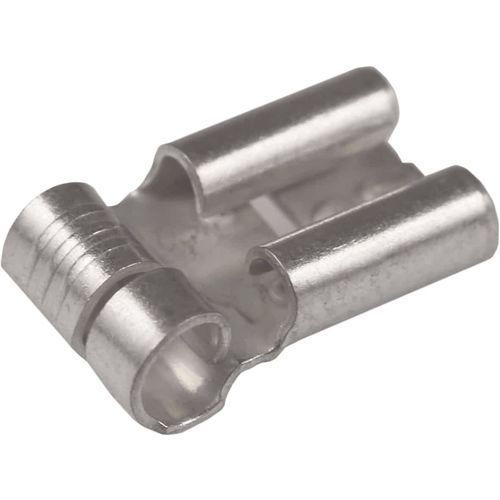

Female solderless terminal B1507FLSB8quick-disconnectelbownon-insulated
Add to favorites
Compare this product
Characteristics
- Connection type
- female, quick-disconnect
- Configuration
- elbow
- Insulation
- non-insulated
- Material
- copper, tin, brass
- Lenght
13 mm
(0.51 in)
Description
Material: brass/Cu, tin plated Cu/Sn
Uninsulated Flag receptacles , 90° rolled type, for conductors 0,5-1,5 mm².
e (mm): 7.7
t (mm) - palm thickness: 0.4
s (mm) - strip length: 7
Tab Size: 6,3x0,8
AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
Material: Brass
AWG-range, Min: 20
AWG-range, Max: 16
Nominal cross section, Min (mm²): 0.5
Nominal cross section, Max (mm²): 1.5
