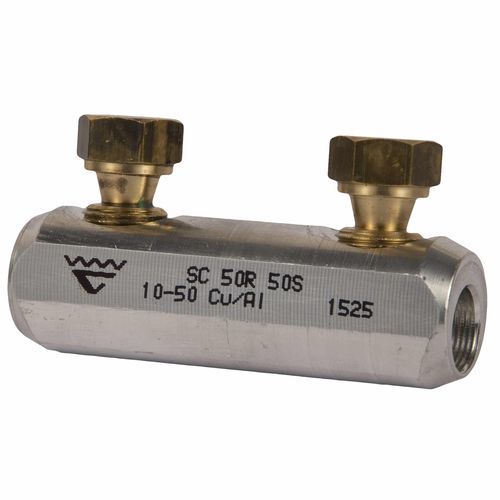

Data connector SC50R50Sroundscrewinsulation
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- round
- Connection type
- screw
- Electrical characteristics
- insulation, voltage
- Material
- copper, brass
- Product applications
- cable, filling
- Other characteristics
- IEC
Description
shearbolt material: brass, for minimum friction
with partition wall
pre-threaded shear-off shearbolts for easy handling
voltage range: 1 -36 kV
meets the requirements of IEC standard 61238-1:2003
Shearbolt connector 1-36 kV suitable for both Al and Cu class 1 and class 2 cable. Round cable 10-50 mm² (Cu RE 10-35 mm²), sector-shaped cable 16-50 mm². When splicing screen conductors 6-35 mm², filling bit SC95N/PEN is used for splicing the copper screen of the cable.
Catalogs
No catalogs are available for this product.
See all of Elpress‘s catalogsOther Elpress products
