Data connector A1535SKWthrough-holeinsulationinsulated
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- through-hole
- Electrical characteristics
- insulation, insulated
- Material
- PA, tin
- Product applications
- sleeve, strip, pipe, tool
- Other characteristics
- halogen-free, heat-shrink
Description
Material: Cu 99.95%, tin plated Cu/Sn, contact sleeve of Cu pipe.
Insulation halogen-free PA, hot melt adhesive inside the isolation.

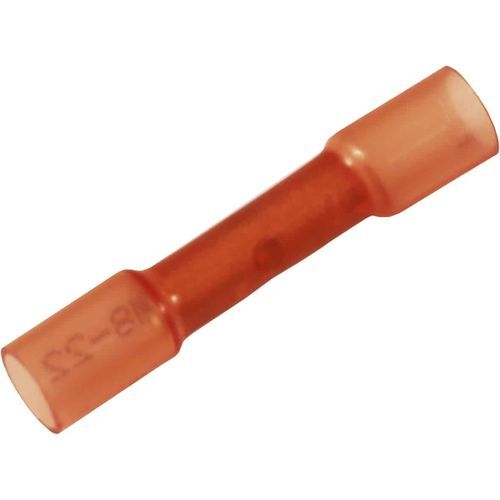

Insulated heat shrink connector with hot melt adhesive for 0.5-1.5 mm² cable. Used with certified tool GSW0560C.
d (mm): 3.7
L (mm): 31.5
s (mm) - strip length: 8
Insulation material: PA
AWG/MCM Cu: 20 - 16 AWG
mm² Cu: 0,5-1,5
Catalogs
No catalogs are available for this product.
