Data connector AS25-16crimpthrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- crimp, through-hole
Description

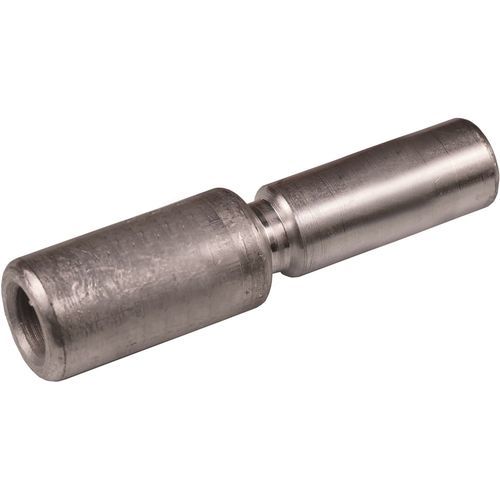

Al through connector with partition for stranded Al cable 25-16 mm², or for solid Al cable 35-25 mm². Used for splicing Al conductors of different areas. Used with Elpress certified systems V1300, V250.
s1 (mm): 29
d (mm): 6.8
D (mm): 13
L (mm): 67
d1 (mm): 5.9
D1 (mm): 13
s (mm) - strip length: 29
AWG/MCM Stranded Al: 4 - 6 AWG
AWG/MCM Solid Al: 24
mm² Stranded Al: 25-16
mm² Solid Al: 35-25
