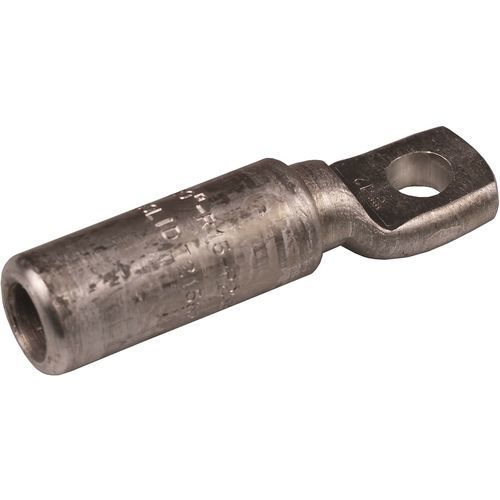

Crimp solderless terminal AK120-12screwaluminum
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp, screw
- Material
- aluminum
- Lenght
104 mm
(4.09 in)- Outer diameter
25 mm
(0.98 in)
Description
Used for connecting Al conductors to Al busbar.
Two crimps are needed.
Al terminal for stranded Al cable 120 mm², or for solid Al cable 150 mm² with an M12 hole in the palm. Used with Elpress certified systems V1300 or V250.
W (mm): 27
N (mm): 14
N1 (mm): 15
P (mm): 29
t (mm) - palm thickness: 10.5
s (mm) - strip length: 60
Screw: M12
AWG/MCM Stranded Al: 4/0 AWG
AWG/MCM Solid Al: 300 MCM
mm² Stranded Al: 120
mm² Solid Al: 150
