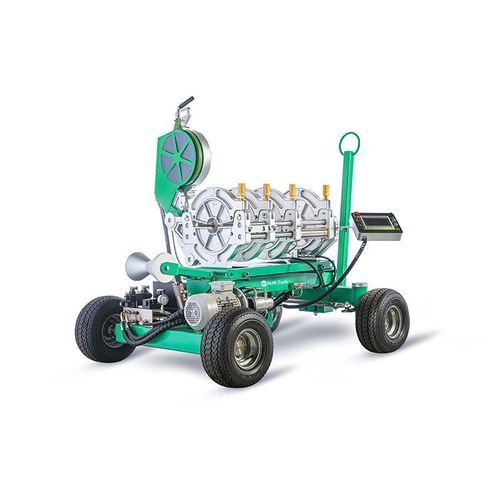

Butt welding machine Mazinger 355hot plateautomaticwith trolley
Add to favorites
Compare this product
Characteristics
- Technique
- butt, hot plate
- Operational mode
- automatic
- Configuration
- with trolley
- Applications
- for thermoplastics
- Power supply
- 380V three-phase
- Other characteristics
- hydraulic
- Power
4,000 W, 9,300 W
Description
The Mazinger 355i is a trailer-mounted automatic butt fusion welding machine for on-site welding of PE/HDPE and other thermoplastic pipes. It combines a dual-axis structural frame, hydraulic systems, on-board heater and trimmer, removable carriage and data-logging capability to support heavy-duty construction and infrastructure work.
Key features
Applications
Technical specifications
Key features
- Dual-axis structural frame for strength and even distribution of welding force.
- On-board heating plate with protection frame and insulated shield.
- On-board high-capacity hydraulic trimmer; detachable for short-spigot welding.
- Removable machine chassis for in-ditch use and trailer-mounted mobility (towing ring) with high-flotation inflatable tires and linkage front axle.
- Dragging bar designed to enable welding between the 3rd and 4th clamp; quick-fit insert system and robust jaws for secure pipe holding.
- Hydraulic pipe lift, rugged outriggers and hydraulic clamping for efficient handling and stability.
- SIEMENS PLC automated control on automatic models; durable aluminum components for reduced weight and corrosion resistance.
- Data logging compatibility (PEWELDBANK) with USB support; capacity for extensive reporting (up to 30,000 reports).
Applications
- On-site welding for construction sites, water and gas distribution, infrastructure and field repairs.
Technical specifications
- Models: Mazinger 355i (automatic), Mazinger 355 (manual).
- Welding range: 110–355 mm (4"–14" IPS).
- Heater power: 4.0 kW; Electric motor: 4.0 kW; Trimmer: hydraulic.
- Hydraulic: system pressure up to 110 Bar; reservoir 23 L.
- Weights: machine 600 kg (excl. inserts); shipping 750 kg (excl. inserts).
- Dimensions: machine 2000 x 1340 x 1640 mm; carriage removable (1080 x 915 x 707 mm); shipping 2230 x 1520 x 1640 mm.
- Chassis & mobility: welded steel tube frame; linkage front axle; high-flotation inflatable tires; towing ring transport.
- Optional / accessories: quick-fit inserts, stub end device, mobile support roller, data logger (PEWELDBANK compatible).
