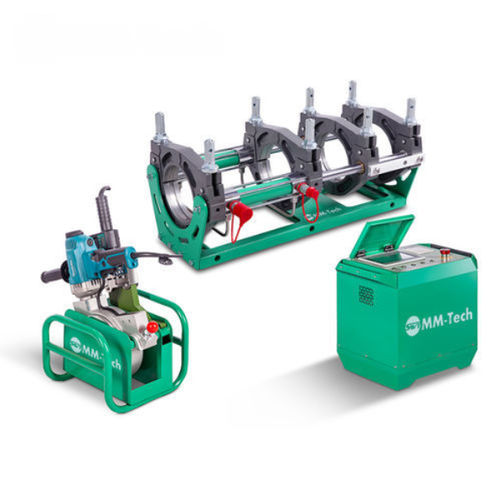

Butt welding machine SWT-V200/63Aautomaticfor thermoplasticsCNC
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for thermoplastics
- Other characteristics
- CNC, hydraulic, ISO
- Power
3,000 W
- Weld thickness
Max.: 200 mm
(7.9 in)Min.: 63 mm
(2.5 in)
Description
Overview
CNC thermofusion welding equipment for HDPE, PE, PP and PVDF pipes. Automatic butt fusion welder designed for mining and industrial pipeline installation with a fully encased CNC hydraulic controller, PLC touchscreen and RFID operator access. Supports onboard printing and USB download of welding reports (capacity up to 2000 records). Complies with DVS 2207, ISO 21307 and ASTM F2620 standards.
Key features
Technical Data Sheet
Automatic Butt Fusion Welding Machine 63-200 mm Specifications
Model: SWT-V200/63A
Welding range O.D. (mm): 63-200
Reducer inserts included: 63, 75, 90, 110, 125, 140, 160, 180
Power supply: 230 V 50/60 Hz
Rated power: 3.0 kW
Piston area: 6.27 cm²
Net/Gross weight (kg): approx. 110 / 140
Applications
Technical specifications
CNC thermofusion welding equipment for HDPE, PE, PP and PVDF pipes. Automatic butt fusion welder designed for mining and industrial pipeline installation with a fully encased CNC hydraulic controller, PLC touchscreen and RFID operator access. Supports onboard printing and USB download of welding reports (capacity up to 2000 records). Complies with DVS 2207, ISO 21307 and ASTM F2620 standards.
Key features
- Fully encased CNC hydraulic controller unit for protected operation.
- PLC touchscreen control with RFID access for secure operator management.
- DuPont Teflon-coated heating plate for improved service life and non-stick performance.
- Accurate hydraulic control and digital temperature adjustment for repeatable welds.
- Onboard welding report printing and USB interface for report export (≈2000 records).
- Lightweight aluminium clamps and compact frame for easier transport and field handling.
- Suitable for HDPE/PE/PP/PVDF pipes used in gas, water, wastewater, mining and industrial applications.
Technical Data Sheet
Automatic Butt Fusion Welding Machine 63-200 mm Specifications
Model: SWT-V200/63A
Welding range O.D. (mm): 63-200
Reducer inserts included: 63, 75, 90, 110, 125, 140, 160, 180
Power supply: 230 V 50/60 Hz
Rated power: 3.0 kW
Piston area: 6.27 cm²
Net/Gross weight (kg): approx. 110 / 140
Applications
- Potable water distribution systems
- Wastewater treatment piping
- Mining pipeline installations
- Industrial fluid transfer systems
- HDPE boat construction
- Geothermal heating and cooling systems
- Agricultural irrigation and aquaculture floating cage systems
Technical specifications
- Model designation: SWT-V200/63A
- Welding range (outer diameter): 63–200 mm
- Compatible materials: HDPE, PE, PP, PVDF
- Reducer insert sizes included: 63, 75, 90, 110, 125, 140, 160, 180
- Power supply: 230 V, 50/60 Hz
- Rated electrical power: 3.0 kW
- Piston area: 6.27 cm²
- Machine weight (net/gross): approx. 110 / 140 kg
- Heating plate: DuPont Teflon coating
- Control: CNC hydraulic controller with PLC touchscreen and RFID access
- Data: onboard welding report printing; USB interface for report download (capacity ~2000 records)
- Standards: DVS 2207, ISO 21307, ASTM F2620
