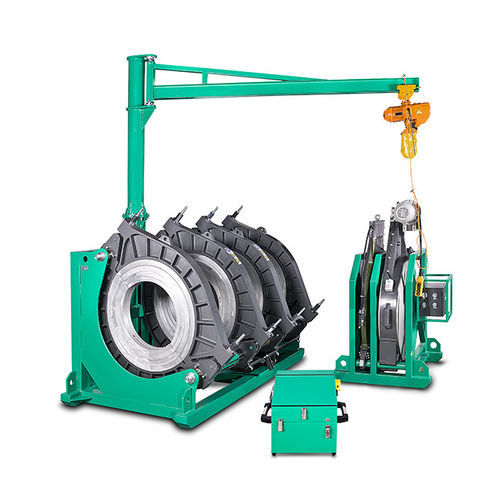

Butt welding machine SWT-V800/500A

automaticfor pipesfor plastic pipe

Automatic CNC hydraulic butt fusion welding machines designed for high-precision joining of HDPE, PE, PP and PVDF pipelines in applications such as natural gas distribution, potable water, wastewater, mining and industrial fluid transfer. Units combine a fully enclosed CNC hydraulic controller with PLC touchscreen control, RFID access and thermal tooling for consistent, repeatable welds.

Key features

• Fully enclosed, compact CNC hydraulic controller unit for field durability.
• PLC touchscreen interface with RFID operator authentication and secure access control.
• Onboard storage and printing of welding reports (capacity > 2,000); USB interface for report export and printing.
• DuPont Teflon-coated heating plate for long life and stable temperature control (typical variation: ±2–3°C for compact models; ±5–6°C for larger systems).
• Lightweight aluminum clamps and compact mobile design for easier handling and transport.
• German-made oil seal kit ensuring stable hydraulic pressure performance and reliability.
• Four STUCCHI quick couplings (Italy) to simplify hydraulic connections and prevent oil leakage during assembly/disassembly.
• Integral shaft with top chromate treatment to reinforce chassis and resist twisting or deformation under heavy loads.
• Trimmer safety switch disables operation unless manually activated to enhance operator safety.
• Control system rated IP54 with servo-driven lightweight chassis; built-in rear sockets supply power to trimmer/heating plate, reducing dependency on external power units.
• Compliance with DVS/ISO/WIS welding standards; supports remote diagnostics and firmware upgrades.

Characteristics / Specifications

• Series: SWT-V series (models: SWT-V800/500A, SWT-V1000/630A, SWT-V1200/630A, SWT-V1600/1200A).
• Welding range OD (mm):
  • SWT-V800/500A: 500–800
  • SWT-V1000/630A: 630–1000
  • SWT-V1200/630A: 630–1200
  • SWT-V1600/1200A: 1200–1600
• Reducer inserts (supplied sizes):
  • SWT-V800/500A: 500, 560, 630, 710
  • SWT-V1000/630A: 630, 710, 800, 900
  • SWT-V1200/630A: 630, 710, 800, 900, 1000
  • SWT-V1600/1200A: 1200, 1400
• Power supply: 400V 50/60Hz (all models).
• Rated power (kW):
  • SWT-V800/500A: 17.60
  • SWT-V1000/630A: 23.40
  • SWT-V1200/630A: 29.00
  • SWT-V1600/1200A: 49.50
• Piston area (cm²):
  • SWT-V800/500A: 44.00
  • SWT-V1000/630A: 38.80
  • SWT-V1200/630A: 50.70
  • SWT-V1600/1200A: (not specified)
• Overall M.W./G.W. (kg):
  • SWT-V800/500A: 1300 / 1420
  • SWT-V1000/630A: 2400 / 2600
  • SWT-V1200/630A: 2520 / 2780
  • SWT-V1600/1200A: 7800 / -
• Report capacity: >2,000 records (local/USB/printable).
• Panel protection: IP54 (control system).
