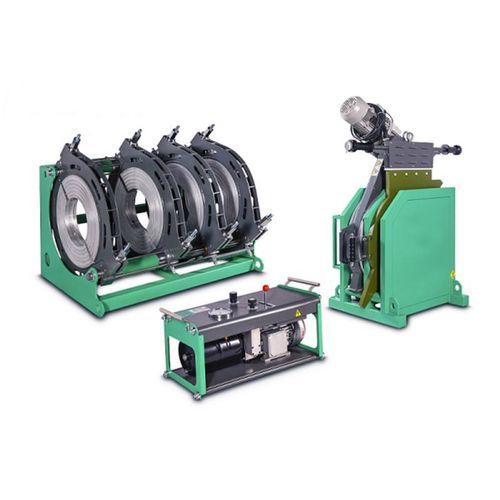

Butt welding machine SWT-V800/500SHPautomaticlarge-diameterfor pipes
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for plastics, for pipes, large-diameter
- Power supply
- 380V three-phase
- Other characteristics
- hydraulic, ISO, high-pressure
- Power
16,900 W
- Weld thickness
Max.: 800 mm
(31.5 in)Min.: 500 mm
(19.7 in)
Description
Product overview
High-pressure butt fusion welding machine for HDPE, PP and PVDF pipes. Steel and aluminum construction for on-site and factory use. Covers pipe O.D. 500–800 mm (20"–30" IPS). Designed for water, gas and industrial pipeline installations. Complies with ISO 21307 and ASTM F2620 standards. Includes 2-year warranty and professional after-sales service.
Key features
Data sheet
Applications
Technical specifications
High-pressure butt fusion welding machine for HDPE, PP and PVDF pipes. Steel and aluminum construction for on-site and factory use. Covers pipe O.D. 500–800 mm (20"–30" IPS). Designed for water, gas and industrial pipeline installations. Complies with ISO 21307 and ASTM F2620 standards. Includes 2-year warranty and professional after-sales service.
Key features
- Welding range: 500–800 mm (20"–30" IPS).
- Hydraulic system with adjustable pressure control up to 180 BAR for precise fusion.
- Teflon-coated heating plate with consistent temperature up to 320℃.
- Intuitive control panel with configurable parameters and clear readouts.
- Safety features: temperature sensors, emergency stop and electrical protection.
Data sheet
- Model: SWT-V800/500SHP
- Welding O.D.: 500–800 mm
- Reducer inserts: 500, 560, 630, 710
- Inserts type: Multi / ISO / Single
- Piston area: 44 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380V 50/60Hz, 3P
- Rated power: 16.9 kW
- Heater power: 12.5 kW
- Trimmer power: 2.2 kW
- Pump power: 2.2 kW
- Maximum temperature: 320 ℃
- Packing dimensions (examples): 2230×1460×1600 mm; 1390×1000×1660 mm; 850×400×560 mm
- Gross weight: 1290 kg
Applications
- Potable water supply networks
- Wastewater management systems
- Mining and industrial pipelines
- Geothermal heating and cooling installations
- Gas pipeline projects
- Aquaculture floating cage systems
- HDPE boat fabrication
- Industrial fluid transfer
- Municipal engineering pipelines
- Water treatment equipment connections
- Agricultural irrigation systems
Technical specifications
- Model: SWT-V800/500SHP
- Welding range (O.D.): 500–800 mm
- Reducer inserts: 500, 560, 630, 710
- Inserts type: Multi / ISO / Single
- Piston area: 44 cm²
- Welding pressure: 0–180 BAR
- Supply: 380V 50/60Hz, 3P
- Rated power: 16.9 kW
- Heater: 12.5 kW
- Trimmer: 2.2 kW
- Pump: 2.2 kW
- Max temperature: 320 ℃
- Packing dimensions: see data sheet
- Gross weight: 1290 kg
