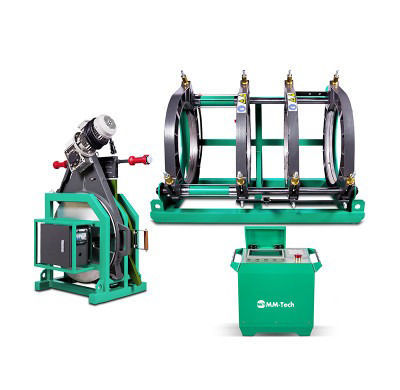

Butt welding machine SWT-V500/280A

automaticfor plastic pipefor thermoplastics

Overview
MM-Tech automatic CNC butt fusion welding machine for HDPE, PE, PP and PVDF pipes. Designed for water, gas and infrastructure projects; compliant with DVS 2207, ISO 21307 and ASTM F2620. Fully enclosed CNC hydraulic drive and PLC touchscreen deliver stable, repeatable welding cycles.

Highlights

• PLC touchscreen control with RFID user access for operator management and traceability.
• Onboard report printing and USB export; internal storage for up to 2000 weld records.
• DuPont Teflon-coated heating plate to minimise sticking and extend service life.
• Lightweight aluminium clamps and compact frame for easy transport and on-site use.

Description
Model SWT-V500/280A is engineered for precise butt fusion welding of 280-500 mm (11"-20" IPS) pipes. The closed-loop CNC hydraulic system ensures accurate axial movement and pressure control while the PLC interface simplifies cycle setup and monitoring. RFID access secures operator profiles; weld reports support quality control and traceability via printed output or USB export. Suitable for contractors and utilities requiring portable, reliable fusion equipment.

Data sheet
Automatic Butt Fusion Welding Machine 280-500mm Specifications
Model: SWT-V500/280A
Welding Range O.D. (mm): 280-500
Reducer Inserts: 280, 315, 355, 400, 450
Power Supply: 400V 50/60Hz
Rated Power (kW): 9.50
Piston Area (cm²): 23.06
Net/Gross Weight (kg): 420 / 510

caractéristiques / spécifications techniques

• Model: SWT-V500/280A
• Welding range (O.D.): 280-500 mm
• Reducer inserts: 280, 315, 355, 400, 450
• Power supply: 400V 50/60Hz
• Rated power: 9.50 kW
• Piston area: 23.06 cm²
• Net weight / Gross weight: 420 kg / 510 kg
• Materials compatible: HDPE, PE, PP, PVDF
• Standards compliance: DVS 2207, ISO 21307, ASTM F2620
• Features: fully enclosed CNC hydraulic system, PLC touchscreen, RFID access, DuPont Teflon coated heating plate, USB report export
