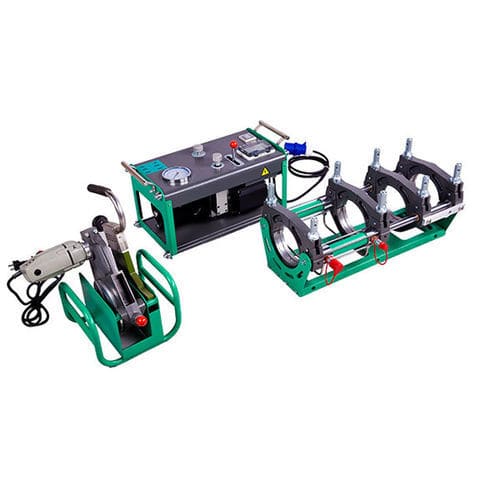

Butt welding machine SWT-V200/63H

manualbenchtop220V single phase

Product Overview
Hydraulic butt fusion welding machine designed for HDPE, PP and PVDF pipe systems used in water, gas, mining and industrial installations. Model SWT-V200/63H meets common industry welding standards and is engineered for stable, repeatable on-site fusion joints.

Key Features

• Powerful hydraulic station with a motor sized for stable, continuous performance.
• Integrated accumulator to maintain and replenish welding pressure during operation.
• Heating plate with DuPont Teflon coating for extended durability and consistent heat transfer.
• High-quality quick connectors and pressure valves by Stucchi (Italy) for reliable hydraulic connections.

Applications
Suitable for butt fusion of HDPE, PE, PP and PVDF pipes in potable water, wastewater, mining, geothermal heating/cooling, marine HDPE structures, municipal infrastructure, agricultural irrigation and industrial fluid transfer pipelines.

Data Sheet
Model: SWT-V200/63H
Welding Range O.D. (mm): 63-200
Reducer Inserts: 63, 75, 90, 110, 125, 140, 160, 180
Power Supply: 220V 50Hz
Rated Power (kW): 3
Piston Area (cm²): 6.27
Overall Net/Gross Weight (kg): 110 / 140

Technical Specifications

• Model: SWT-V200/63H
• Welding range: 63-200 mm (2"-8" IPS)
• Reducer inserts included: 63, 75, 90, 110, 125, 140, 160, 180
• Power supply: 220V 50Hz
• Rated power: 3 kW
• Piston area: 6.27 cm²
• Machine weight (net/gross): 110 kg / 140 kg
• Hydraulic station with sufficiently powered motor for stable performance
• Accumulator for maintaining/replenishing welding pressure
• Heating plate with DuPont Teflon coating for durability
• High-quality quick connectors and pressure valves (Stucchi)
• Material compatibility: HDPE, PE, PP, PVDF
• Standards compliance: DVS 2207, ISO 21307, ASTM F2620
