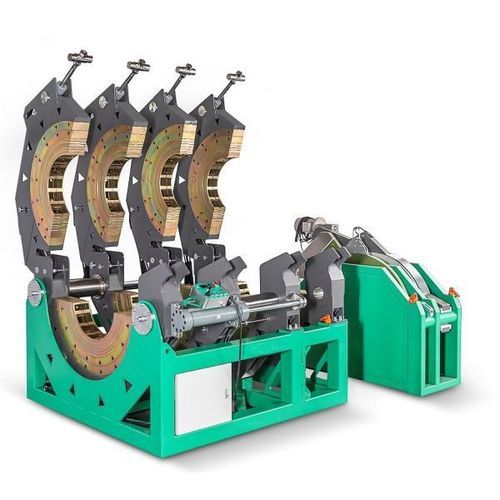

Butt welding machine SWT-V3000/1800H

manuallarge-diameterfor pipes

Overview
Hydraulic butt fusion welding machine engineered for on-site assembly of large-diameter thermoplastic pipelines. The SWT-V3000/1800H is suitable for HDPE, PE, PP and PVDF materials and complies with DVS 2207, ISO 21307 and ASTM F2620 standards. Designed for precise temperature control, hydraulic alignment and repeatable weld quality on 1000–3000 mm (42–118 in) diameters.

Applications

• Potable water distribution networks
• Sewage and wastewater systems
• Mining and heavy industrial pipelines
• HDPE vessel and boat fabrication
• Geothermal heating and cooling installations
• Municipal and large-diameter pipeline projects

Certifications & services
CE certified. Supplied with a 2-year warranty. Technical support, spare parts availability and operator training options offered to support commissioning and maintenance.

Data sheet (summary)

• Model: SWT-V3000/1800H
• Welding range (O.D.): 1000–3000 mm (note: machine accommodates reducer inserts for reduced diameters)
• Standard working range: 1800–3000 mm depending on setup
• Suitable materials: HDPE, PE, PP, PVDF
• Reducer inserts available: 1800, 2000, 2200, 2500, 3000
• Power supply: 380V, 50/60Hz
• Heating plate max temperature: 270 °C
• Surface temperature deviation: ≤ ±5 °C
• Rated power: 155 kW
• Standards: DVS 2207, ISO 21307, ASTM F2620
• Warranty: 2 years
