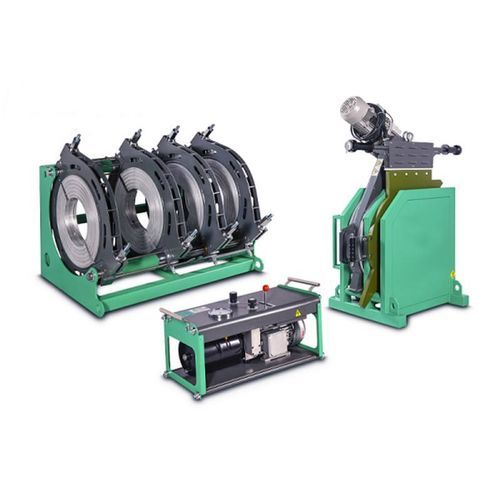

Butt welding machine SWT-V630/315SHPautomaticlarge-diameterfor plastic pipe
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for plastic pipe, for thermoplastics, large-diameter
- Power supply
- 380V three-phase
- Other characteristics
- precision, high-precision, hydraulic, electric, programmable, ISO, high-pressure
- Power
12,300 W
- Weld thickness
Min.: 315 mm
(12.4 in)Max.: 630 mm
(24.8 in)
Description
Product Overview
High-pressure butt fusion machine manufactured in steel and aluminum, designed for welding HDPE, PP and PVDF pipes used in water, gas and infrastructure projects. Compliant with ISO 21307 and ASTM F2620 to deliver precise and reliable butt fusion joints suitable for site and factory conditions.
Key Features
Additional Description
This high-performance butt fusion machine includes trimming and pump units for end preparation and hydraulic operation. Modular reducer inserts (315, 355, 400, 450, 500, 560) and multi/ISO/single insert compatibility allow fast configuration for different pipe diameters and standards.
Data Sheet
Model: SWT-V630/315SHP
Welding Range O.D.: 315–630 mm
Reducer Inserts: 315, 355, 400, 450, 500, 560
Inserts Type: Multi / ISO / Single
Piston Area: 23.06 cm²
Welding Pressure Range: 0–180 BAR
Power Supply: 380 V, 50/60 Hz, 3-phase
Rated Power: 12.3 kW
Heater Power: 9.3 kW
Trimmer Power: 1.5 kW
Pump Power: 1.5 kW
Maximum Temperature: 320 ℃
Packing Dimensions: 1620×1150×1240 mm ; 1040×740×1480 mm ; 820×370×530 mm
Gross Weight: 739.2 kg
Compatible Pipe Materials: HDPE, PP, PVDF
Standards: ISO 21307, ASTM F2620
Technical specifications
High-pressure butt fusion machine manufactured in steel and aluminum, designed for welding HDPE, PP and PVDF pipes used in water, gas and infrastructure projects. Compliant with ISO 21307 and ASTM F2620 to deliver precise and reliable butt fusion joints suitable for site and factory conditions.
Key Features
- Wide welding range: 315–630 mm (12″–24″ IPS) to cover multiple project requirements.
- Robust hydraulic system: precise pressure control for consistent joint integrity (0–180 BAR).
- Teflon-coated heating plate: uniform heating and extended plate service life.
- User-friendly control panel: adjustable welding parameters and simple operation for field teams.
- Safety systems: integrated temperature sensors and emergency stop for operator protection.
Additional Description
This high-performance butt fusion machine includes trimming and pump units for end preparation and hydraulic operation. Modular reducer inserts (315, 355, 400, 450, 500, 560) and multi/ISO/single insert compatibility allow fast configuration for different pipe diameters and standards.
Data Sheet
Model: SWT-V630/315SHP
Welding Range O.D.: 315–630 mm
Reducer Inserts: 315, 355, 400, 450, 500, 560
Inserts Type: Multi / ISO / Single
Piston Area: 23.06 cm²
Welding Pressure Range: 0–180 BAR
Power Supply: 380 V, 50/60 Hz, 3-phase
Rated Power: 12.3 kW
Heater Power: 9.3 kW
Trimmer Power: 1.5 kW
Pump Power: 1.5 kW
Maximum Temperature: 320 ℃
Packing Dimensions: 1620×1150×1240 mm ; 1040×740×1480 mm ; 820×370×530 mm
Gross Weight: 739.2 kg
Compatible Pipe Materials: HDPE, PP, PVDF
Standards: ISO 21307, ASTM F2620
Technical specifications
- Model: SWT-V630/315SHP
- Welding diameter range: 315–630 mm (12″–24″ IPS)
- Reducer inserts available: 315, 355, 400, 450, 500, 560
- Inserts Type: Multi / ISO / Single
- Piston area: 23.06 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380 V, 50/60 Hz, 3-phase
- Rated power: 12.3 kW; Heater power: 9.3 kW
- Trimmer power: 1.5 kW; Pump power: 1.5 kW
- Maximum temperature: 320 ℃
- Packing dimensions: 1620×1150×1240 mm ; 1040×740×1480 mm ; 820×370×530 mm
- Gross weight: 739.2 kg
- Compatible pipe materials: HDPE, PP, PVDF
- Standards compliance: ISO 21307, ASTM F2620
