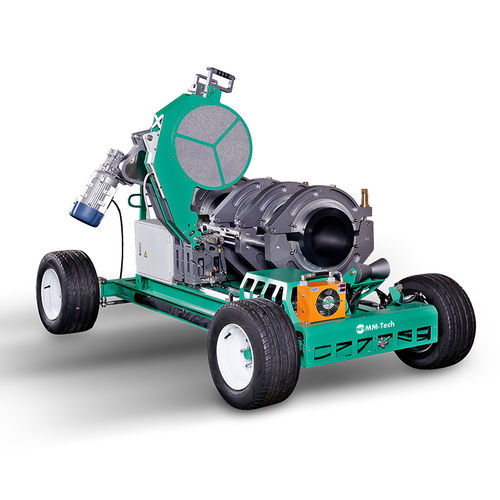

Butt welding machine Mazinger 450i

hot plateautomaticwith trolley

MM-Tech Mazinger 450i is a trailer-mounted butt fusion welding machine engineered for construction sites and pipe fusion projects. It delivers automated and manual high-force, precise fusion for thermoplastic pipes (HDPE, PE, PP, PVDF) across a 200–450 mm (6"–18" IPS) welding range.

Key features

• Trailer-mounted chassis for site mobility and towing via towing ring
• Dual-axis structural frame for strength and even distribution of welding force
• On-board heating plate with protection frame and insulated shield
• On-board high-capacity trimmer (1.5 kW) — electric-driven and removable for in-ditch use
• Removable machine carriage suitable for in-ditch operation
• Dragging bar designed to weld between the 3rd and 4th clamp
• ISO-compatible Quick Fit inserts with quick install/release system and strong anti-slip jaws
• Hydraulic pipe lift to facilitate pipe loading and unloading
• Removable control panel with data-logging (store up to 30,000 welding reports) and USB port for data download and firmware upgrade
• Optional fully automated control using SIEMENS PLC; manual and automatic model variants available

Technical specifications

• Brand: MM-Tech
• Commercial designation (model): Mazinger 450i
• Models / references: 902306450 (ARMOR 450i), 902306618 (ARMOR 18i), 902307450 (ARMOR 450), 902307618 (ARMOR 18)
• Operating modes: Automatic (high force) and Manual (high force)
• Electrical supply (typical): 220/380V, 50/60Hz, 3 Phase
• Welding range (capacity): 200 mm – 450 mm (6" IPS – 18" IPS)
• Inserts type: Quick Fit (ISO inserts)
• Heater power: 6 kW
• Trimmer power: 1.5 kW
• Electric motor power: 2.2 kW
• Hydraulic system pressure: 180 Bar (2610 PSI) max
• Hydraulic reservoir capacity: 5 Liters (1.32 Gallons)
• Machine weight (excluding inserts): 964 Kg (2120 lbs)
• Shipping weight (including inserts): 1203 Kg (2646 lbs)
• Frame / chassis: Welded steel tube construction
• Front axle: Linkage
• Tires: High-flotation inflatable tires
• Transportation: Pulled via towing ring
• Machine carriage: Removable
• Machine dimensions: 2550 mm x 1660 mm x 1605 mm (100" x 65" x 63")
• Machine carriage dimensions: 1220 mm x 1300 mm x 1285 mm (48" x 51" x 50")
• Shipping dimensions: 2640 mm x 1780 mm x 1650 mm (96" x 70" x 65")
• Optional configuration: Inserts (available), Stub End Device (available), Mobile Support Roller (available), Data Logger (compatible with manual version)
• Data logging: Compatible with PEWELDBANK for manual version; removable control panel stores up to 30,000 welding reports and provides USB for download/firmware
• Materials compatible: HDPE, PE, PP, PVDF
