Butt welding machine MINI 110P

manualbenchtopfor plastics

Product description

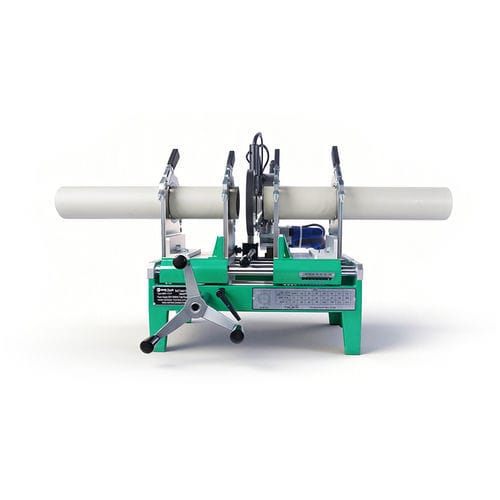

Manual table-mounted butt fusion welding machine with an aluminum chassis, designed to join HDPE, PE, PP, PPH and PVDF pipes and fittings for water, gas and mining installations. The unit uses the butt fusion method to produce homogeneous, leak-free joints in accordance with international welding standards.

Overview
The MINI 110P is a portable, manual table fusion unit suitable for workshop use and on-site assembly. It features a DuPont Teflon-coated heating plate for consistent heat transfer and reduced sticking, and adjustable clamps to align and secure pipe ends during fusion.

Main benefits

• Simple manual operation and portable table design for workshop or field use
• Compatible with HDPE, PE, PP, PPH and PVDF pipes and fittings
• DuPont Teflon-coated heating plate for reduced adhesion and easier cleaning
• Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards
• 2-year quality warranty

Technical specifications

• Model: MINI 110P
• Welding range: 20-110 mm (1"-4" IPS)
• Compatible materials: HDPE, PE, PP, PPH, PVDF
• Construction: aluminum chassis/body
• Heating plate: DuPont Teflon coated
• Standards: DVS 2207, ISO 21307, ASTM F2620
• Typical applications: water distribution, gas pipeline systems, mining
• Warranty: 2-year warranty
