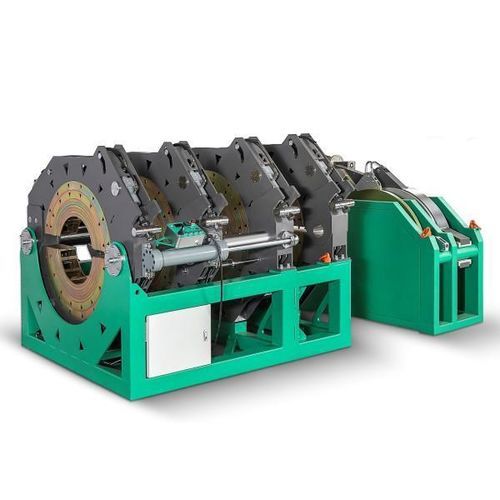

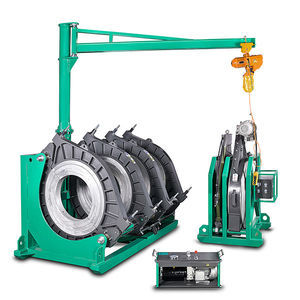

Butt welding machine SWT-V2600/1600H

for plasticslarge-diameterfor plastic pipe

Overview
Hydraulic butt fusion welding machine designed for large-diameter thermoplastic pipelines used in potable water, gas distribution and mining. Engineered for HDPE, PP and PVDF pipe welding with compliance to DVS 2207, ISO 21307 and ASTM F2620 standards. Suitable for on-site pipeline fabrication and maintenance.

Applications

• Potable water distribution networks
• Wastewater and sewage systems
• Mining and industrial fluid transfer
• HDPE vessel and boat construction
• Geothermal heating and cooling piping
• Municipal engineering and infrastructure
• Water treatment plants
• Long-distance mining pipelines
• Industrial process piping
• Natural gas distribution (compatible pipe materials)
• Aquaculture floating cages
• Agricultural irrigation systems

Data sheet
Model: SWT-V2600/1600H
Welding outer diameter range: 1600–2600 mm (63–102 in IPS)
Suitable materials: PE, PP, PVDF
Reducer inserts: 1600, 1800, 2000, 2200, 2500 mm
Power supply: 380 V, 50/60 Hz
Max. heating plate temperature: 270°C
Surface temperature deviation: ≤ ±5°C
Rated power: 103 kW

Technical specifications

• Model: SWT-V2600/1600H
• Welding O.D. range: 1600–2600 mm
• Suitable for PE, PP, PVDF pipes
• Reducer inserts available: 1600 / 1800 / 2000 / 2200 / 2500 mm
• Power supply: 380 V, 50/60 Hz
• Heating plate max temperature: 270°C
• Surface temperature deviation: ≤ ±5°C
• Rated power: 103 kW
• Standards: DVS 2207; ISO 21307; ASTM F2620
