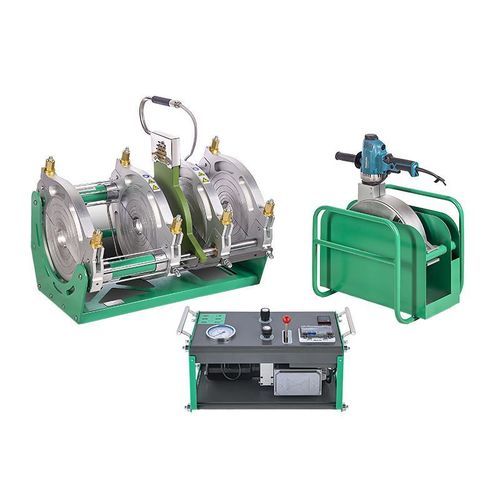

Butt welding machine SWT-V160/63SHP

manualfor pipesfor thermoplastics

High-pressure butt fusion welding machines for PN25 HDPE water pipes, covering pipe sizes from 63 mm to 355 mm. Built on a precision-machined aluminum chassis with cartridge hydraulic valves and a Makita-driven worm trimmer to deliver consistent thermofusion welding for water, gas, industrial and mining pipelines.

Key features

• Hydraulic cartridge valves for simplified maintenance and fast repair.
• Trimmer driven by a Makita electric drill with worm/turbine power system for stable beveling and end-prep.
• Outer and inner clamps machined from engraved aluminum to prevent pipe slippage and ensure concentric clamping.
• Hydraulic hoses on the frame made of stainless steel to resist corrosion and cracking.
• Heating plate with Dupont PTFE (Teflon) coating and stainless-steel junction box for durability and easy cleaning.
• Cylinder and tie rod in stainless steel; sealing rings from internationally recognized brands for reliable pressure retention.

Specifications (summary)

• Models: SWT-V160/63SHP; SWT-V200/63SHP; SWT-V250/90SHP; SWT-V315/90SHP; SWT-V355/90SHP.
• Welding range (O.D.): SWT-V160/63SHP = 63–160 mm; SWT-V200/63SHP = 63–200 mm; SWT-V250/90SHP = 90–250 mm; SWT-V315/90SHP = 90–315 mm; SWT-V355/90SHP = 90–355 mm.
• Reducer inserts: 63, 75, 90, 110, 125, 140 (models extend to 160/180/200/225/250/280/315 depending on model).
• Insert types: Multi / ISO / Single.
• Piston area: 6.27 cm² (SWT-V160/200); 10.99 cm² (SWT-V250); 20.02 cm² (SWT-V315/355).
• Welding pressure range: 0–180 BAR.
• Power supply: 220 V, 50/60 Hz.
• Rated power (by model): 2.5 kW (SWT-V160); 3 kW (SWT-V200); 4.25 kW (SWT-V250); 5.25 kW (SWT-V315); 6.25 kW (SWT-V355).
• Heater power (by model): 1 kW, 1.5 kW, 2 kW, 3 kW or 4 kW depending on model.
• Trimmer power: 0.75 kW (smaller models) or 1.5 kW (larger models) — Makita-driven.
• Pump power: 0.75 kW.
• Maximum temperature: 320 °C.
• Packing dimensions and gross weights vary by model (examples provided in technical block).

Technical characteristics

• Chassis: high-strength precision-machined aluminum for accurate alignment and portability.
• Hydraulics: high-pressure station with cartridge valves supporting up to 180 BAR and enabling quick service.
• Trimmer: machined aluminum milling body paired with Makita electric drill and worm/turbine drive for stable performance and consistent end preparation.
• Heating system: PTFE (Dupont Teflon) coated heating plate for even heat transfer and long service life; precise temperature control to minimize display-to-actual deviation.
• Materials compatibility: HDPE, PE, PP, PVDF and similar thermoplastics.
• Accessories / options: compatible with PeWeldBank data logger; optional roller supports, stub-end holder, additional inserts and welding data loggers.
