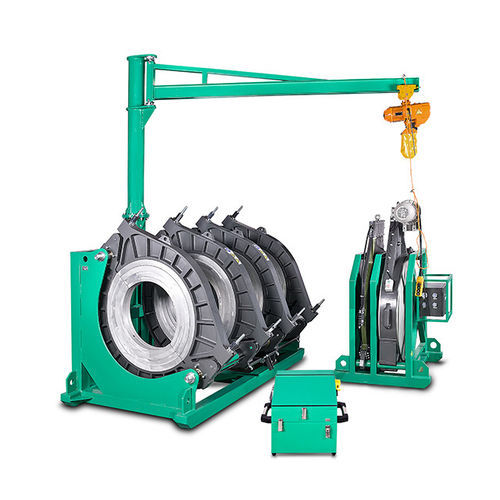

Butt welding machine SWT-V1600/1200A

automaticfor pipes400V three-phase

Product overview
Automatic CNC hydraulic butt fusion welding machine for welding HDPE, PE, PP and PVDF pipes. Designed for natural gas distribution, water supply, wastewater, mining, industrial and infrastructure projects. Compliant with DVS 2207, ISO 21307 and ASTM F2620 standards.

Key features

• Fully enclosed CNC hydraulic controller unit in a compact, serviceable housing
• PLC touchscreen interface with RFID access control for operator management and traceability
• DuPont Teflon-coated heating plate to reduce sticking and extend plate life
• On-board data logging with storage for up to 2000 welds and report printing/download via USB
• Lightweight aluminum clamps and compact chassis for easier handling and transport

Data sheet (excerpt)
Hydraulic Butt Fusion Welding Machine 630-1600mm Specifications
Model: SWT-V1600/1200A
Welding range O.D. (mm): 1200-1600
Reducer inserts: 1200, 1400
Power supply: 400V 50/60Hz
Rated power: 49.50 kW
Piston area: not specified on page
Overall weight (approx.): 7800 kg

Detailed description
MM-Tech's automatic butt fusion welding machines combine CNC hydraulic motion control and a rugged PLC touchscreen to deliver programmable, repeatable weld cycles suitable for large-diameter thermoplastic pipelines. RFID-enabled access restricts settings to authorized operators and supports job tracking. The Teflon-coated heating plate reduces adhesion and maintenance downtime. Integrated data logging and USB report export enable traceability and quality documentation for construction and commissioning records.

Applications
Suitable for natural gas distribution, potable water networks, wastewater pipelines, mining pipelines, industrial piping systems, HDPE boat fabrication, geothermal piping, aquaculture installations and agricultural irrigation systems.

Technical features / specifications

• Model: SWT-V1600/1200A
• Welding range: 1200–1600 mm (48"–63" IPS)
• Reducer inserts available: 1200, 1400
• Power supply: 400V 50/60Hz
• Rated power: 49.50 kW
• Overall weight (approx.): 7800 kg
• Control: Fully enclosed CNC hydraulic controller with PLC touchscreen
• Access technology: RFID
• Heating plate: DuPont Teflon coated
• Data logging: Stores up to 2000 welding reports; reports printable and downloadable via USB
• Compatible materials: HDPE, PE, PP, PVDF
• Typical applications: Gas pipeline, water supply, wastewater, mining, industrial piping, HDPE boat construction, geothermal, aquaculture, agricultural irrigation
• Standards compliance: DVS 2207, ISO 21307, ASTM F2620
• Certifications & warranty: CE certification mentioned; 2-year quality warranty (as stated on page)
