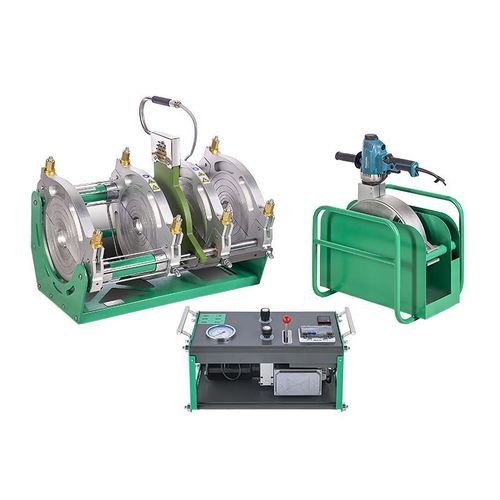

Butt welding machine SWT-V200/63SHP

manualfor plastic pipe220V single phase

Product Overview
MM-Tech supplies aluminium-bodied high-pressure butt fusion welding machines for thermoplastic pipes (HDPE, PE, PP, PVDF). Designed for site and field welding of water and gas networks, the SWT-V200/63SHP meets ISO 21307 and ASTM F2620 requirements for high-force thermofusion.

Main Features

• Hydraulic valves with cartridge design for simplified maintenance and repair
• Trimmer driven via worm gear; compatible with Makita electric drill for power
• Outer and inner clamps precision-machined from engraved aluminium for accurate alignment
• Hydraulic hoses routed on a stainless-steel frame to prevent rust and cracking
• Heating plate with Dupont Teflon coating; stainless-steel junction box

SWT-V200/63SHP Description
The SWT-V200/63SHP is a high-pressure butt fusion welding machine built in precision-machined aluminium to provide stable clamping and welding force. Welding capacity covers O.D. 63–200 mm (2"–8" IPS), suitable for PN25 applications. The unit integrates a worm-driven trimmer power system compatible with a Makita electric drill, a hydraulic pump and adjustable pressure control for accurate thermofusion joints.

Applications

• Water Infrastructure: Fusion welding of potable water networks to produce leak-tight, long-lasting joints.
• Gas Distribution Systems: Welding pipes in gas networks where high-strength, leak-free connections are required.
• Industrial Pipelines: Fabrication and repair of process lines resistant to heat, pressure and chemicals.
• Mining: Installation and maintenance of pipelines for water and slurry under harsh site conditions.

Data Sheet (key fields)
Model: SWT-V200/63SHP
Welding O.D. range: 63–200 mm (2"–8" IPS)
Reducer inserts: 63, 75, 90, 110, 125, 140, 160, 180
Inserts type: Multi / ISO / Single
Piston area: 6.27 cm²
Welding pressure range: 0–180 BAR
Power supply: 220V, 50/60Hz
Rated power: 3 kW; Heater power: 1.5 kW; Trimmer power: 0.75 kW; Pump power: 0.75 kW
Max temperature: 320 ℃
Packing dimensions (options): 840×460×550 mm / 500×470×660 mm / 670×360×490 mm
Gross weight: 156.55 kg

Technical specifications

• Model: SWT-V200/63SHP
• Welding O.D. range: 63–200 mm
• Reducer inserts available: 63, 75, 90, 110, 125, 140, 160, 180
• Inserts type: Multi / ISO / Single
• Piston area: 6.27 cm²
• Welding pressure range: 0–180 BAR
• Power supply: 220V, 50/60Hz
• Rated power: 3 kW
• Heater power: 1.5 kW
• Trimmer power: 0.75 kW (worm-driven system, Makita drill compatible)
• Pump power: 0.75 kW
• Maximum temperature: 320 ℃
• Packing dimensions: 840×460×550 mm; 500×470×660 mm; 670×360×490 mm
• Gross weight: 156.55 kg
