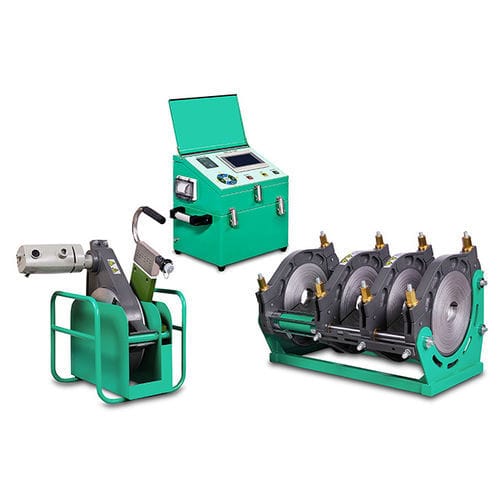

Butt welding machine SWT-V315/90A

hot plateautomaticfor plastic pipe

Overview

High-precision automatic butt fusion welding machines for joining PE, PP, PPR and PVDF pipelines (90–355 mm) used in oil & gas gathering, water supply, wastewater, mining and other industrial applications. These units combine CNC hydraulic control, PLC touch-screen interface, DuPont Teflon-coated heating plate and RFID/advanced data logging to ensure reliable, reproducible and durable welds.

Key built-in functions and features

• Print-capable welding report storage (up to 2000 records) with USB export for traceability.
• DuPont Teflon-coated heating plate (anti-stick) to reduce adhesion and improve temperature stability.
• Narrow single reducer inserts and optional ISO single inserts for flexible pipe-sizing.
• Fully integrated CNC hydraulic controller with robust PLC touch-screen for automated, repeatable welding cycles.
• RFID technology and advanced data logging for user/parameter traceability.
• Lightweight aluminum clamps and compact, space-saving design for on-site transport and operation.
• Premium oil-seal kit from Germany and four STUCCHI quick couplings (Italy) to reduce hydraulic leaks and simplify setup.
• Integral chromate-treated shaft to improve chassis rigidity and resist frame twisting under load.
• Heating plate uniformity approx. 2–3°C for smaller units and 5–6°C for larger units; safety trimmer switch and ergonomic support system for operator comfort.

Applications

• HDPE, PE, PP and PVDF pipeline welding for potable water distribution and supply networks.
• Wastewater collection systems and water treatment plants.
• Mining and industrial fluid transfer pipelines.
• Gas pipeline construction and oil & gas gathering systems.
• Geothermal heating/cooling, municipal infrastructure, agricultural irrigation and HDPE boat constructions.

Included / notable accessories and options

• DuPont Teflon-coated heating plate; optional reducer inserts covering multiple diameters.
• STUCCHI quick couplings for hydraulic connections; premium oil seals; RFID/data logging and USB report export.

Technical specifications

• Model family: SWT-V250/90A, SWT-V315/90A, SWT-V355/90A (SWT-V series).
• Welding range O.D. (mm): SWT-V250/90A: 90–250 mm; SWT-V315/90A: 90–315 mm; SWT-V355/90A: 90–355 mm.
• Reducer inserts examples: SWT-V250/90A: 75*, 90, 110, 125, 140, 160, 180, 200, 225; SWT-V315/90A: 90–280; SWT-V355/90A: 90–315.
• Power supply: 230 V 50/60 Hz.
• Rated power: SWT-V250/90A: 4.25 kW; SWT-V315/90A: 5.25 kW; SWT-V355/90A: 5.25 kW.
• Piston area: SWT-V250/90A: 10.99 cm²; SWT-V315/90A: 20.02 cm²; SWT-V355/90A: 20.02 cm².
• Net/Gross weight examples: SWT-V250/90A: 137 / 163 kg; SWT-V315/90A: 189 / 234 kg; SWT-V355/90A: 208 / 256 kg.
• Heating plate coating: DuPont Teflon. Data handling: up to 2000 records; USB export supported.
• Safety & durability: trimmer safety switch, chromate-treated shaft, high-quality oil seals and STUCCHI quick couplings.
