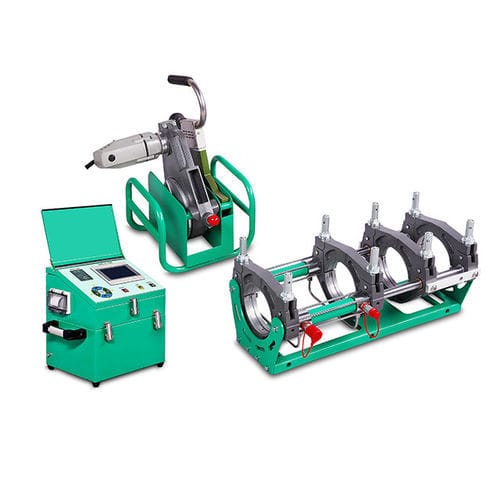

Butt welding machine SWT-V160/63A

automaticfor pipesfor thermoplastics

Overview
The SWT-V series are automatic CNC hydraulic butt fusion welding machines for on-site and workshop use, intended for welding thermoplastic pipes (HDPE/PE/PP/PVDF) in mining, municipal and industrial pipeline installations.

Key features

• Fully encased CNC hydraulic controller unit for stable hydraulic control.
• PLC touchscreen with RFID operator access for secured user control and traceability.
• Onboard storage of 2000+ welding reports with USB export and optional printing.
• Portable clamps and compact chassis suitable for site handling.

Models & welding ranges

• SWT-V160/63A: Welding OD (mm): (50)*63-160. Reducer inserts: (50)*63, 75, 90, 110, 125, 140. Rated power: 2.5 kW. Piston area: 6.27 cm². MW/GW (kg): 96 / 124.
• SWT-V200/63A: Welding OD (mm): 63-200. Reducer inserts: 63, 75, 90, 110, 125, 140, 160, 180. Rated power: 3.0 kW. Piston area: 6.27 cm². MW/GW (kg): 110 / 140.
• SWT-V250/90A: Welding OD (mm): (75)*90-250. Reducer inserts: (75)*, 90, 110, 125, 140, 160, 180, 200, 225. Rated power: 4.25 kW. Piston area: 10.99 cm². MW/GW (kg): 137 / 163.

Product features

• DuPont Teflon-coated heating plate for low adhesion and controlled temperature.
• Precise temperature regulation (small machines ±2–3°C; larger machines ±5–6°C) and safety trimmer switch.
• High-performance oil seal kit (German source) and 4 sets of STUCCHI quick couplings (Italy) to reduce setup time and hydraulic leakage.
• Integral shaft with chromate treatment to improve chassis rigidity under load.
• Automatic control box with IP54 protection, lightweight servo-driven components and integrated rear sockets for peripherals; DVS/ISO/WIS welding programs included.

Technical specifications

• Compatible materials: HDPE, PE, PP, PVDF.
• Applications: potable water, wastewater, municipal engineering, mining, industrial fluid transfer, boat HDPE construction, geothermal systems, irrigation and aquaculture.
• Operator interface: PLC touchscreen with RFID; multi-language welding programs.
• Data & reporting: stores 2000+ reports; supports USB export and printing.
• Control & safety: CNC hydraulic control, safety switches, RFID-secured access.
• Hydraulics & connections: German oil seals; STUCCHI quick couplings.
• Heating plate: DuPont Teflon coating.
• Protection & support: IP54 control box; remote troubleshooting and program updates available.
• Warranty: 2-year quality warranty.
