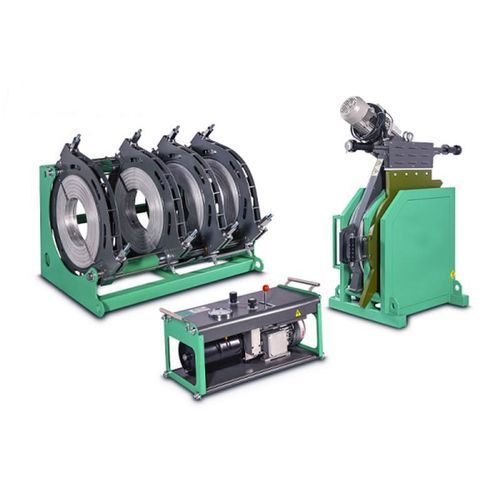

Butt welding machine SWT-V500/280SHPautomaticfor pipesfor thermoplastics
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for thermoplastics, for pipes
- Power supply
- 380V three-phase
- Other characteristics
- ISO
- Power
10,300 W
- Weld thickness
Max.: 500 mm
(19.7 in)Min.: 280 mm
(11 in)
Description
Product Overview
High-pressure butt fusion welding machine for HDPE, PE, PP and PVDF pipes with an operational outer diameter range of 280-500 mm. Built with steel and aluminum components, the SWT-V500/280SHP is engineered for pipeline construction, water and gas distribution networks and industrial installations, complying with ISO 21307 and ASTM F2620.
Key Features
Data Sheet (extracted)
Model: SWT-V500/280SHP
Welding Range O.D. (mm): (200,225,250)*280-500
Reducer Inserts: 280, 315, 355, 400, 450
Inserts Type: Multi / ISO / Single
Piston Area: 23.06 cm²
Welding Pressure Range: 0 - 180 BAR
Power Supply: 380V 50/60Hz, 3P
Rated Power: 10.3 kW
Heater Power: 7.3 kW
Trimmer Power: 1.5 kW
Pump Power: 1.5 kW
Maximum Temperature: 320℃
Packing Dimensions: 1600×1020×1100 mm; 1040×720×1320 mm; 820×370×530 mm
Gross Weight: 611.2 kg
Description
The SWT-V500/280SHP high-pressure butt fusion welding machine delivers precise, high-strength joints for thermoplastic pipes. Its hydraulic control, Teflon-coated heating element and ergonomic controls make it suitable for construction sites and prefabrication facilities. Recommended for water supply, gas pipelines and industrial fluid systems.
Technical Specifications
High-pressure butt fusion welding machine for HDPE, PE, PP and PVDF pipes with an operational outer diameter range of 280-500 mm. Built with steel and aluminum components, the SWT-V500/280SHP is engineered for pipeline construction, water and gas distribution networks and industrial installations, complying with ISO 21307 and ASTM F2620.
Key Features
- Wide welding range: 280-500 mm (11"-20" IPS), with additional reducer inserts for 200, 225, 250 mm.
- Robust hydraulic system for controlled, high-pressure fusion up to 180 BAR.
- Teflon-coated heating plate ensures uniform heating and extended plate life.
- User-friendly control panel with adjustable welding parameters for repeatable results.
- Built-in safety: temperature sensors and emergency stop.
Data Sheet (extracted)
Model: SWT-V500/280SHP
Welding Range O.D. (mm): (200,225,250)*280-500
Reducer Inserts: 280, 315, 355, 400, 450
Inserts Type: Multi / ISO / Single
Piston Area: 23.06 cm²
Welding Pressure Range: 0 - 180 BAR
Power Supply: 380V 50/60Hz, 3P
Rated Power: 10.3 kW
Heater Power: 7.3 kW
Trimmer Power: 1.5 kW
Pump Power: 1.5 kW
Maximum Temperature: 320℃
Packing Dimensions: 1600×1020×1100 mm; 1040×720×1320 mm; 820×370×530 mm
Gross Weight: 611.2 kg
Description
The SWT-V500/280SHP high-pressure butt fusion welding machine delivers precise, high-strength joints for thermoplastic pipes. Its hydraulic control, Teflon-coated heating element and ergonomic controls make it suitable for construction sites and prefabrication facilities. Recommended for water supply, gas pipelines and industrial fluid systems.
Technical Specifications
- Model: SWT-V500/280SHP
- Welding Range O.D.: (200,225,250)*280-500 mm
- Reducer Inserts: 280, 315, 355, 400, 450
- Inserts Type: Multi / ISO / Single
- Piston Area: 23.06 cm²
- Welding Pressure Range: 0 - 180 BAR
- Power Supply: 380V, 50/60Hz, 3P
- Rated Power: 10.3 kW
- Heater Power: 7.3 kW
- Trimmer Power: 1.5 kW
- Pump Power: 1.5 kW
- Maximum Temperature: 320℃
- Packing Dimensions: 1600×1020×1100 mm; 1040×720×1320 mm; 820×370×530 mm
- Gross Weight: 611.2 kg
- Material compatibility: HDPE, PE, PP, PVDF
- Compliance: ISO 21307, ASTM F2620
