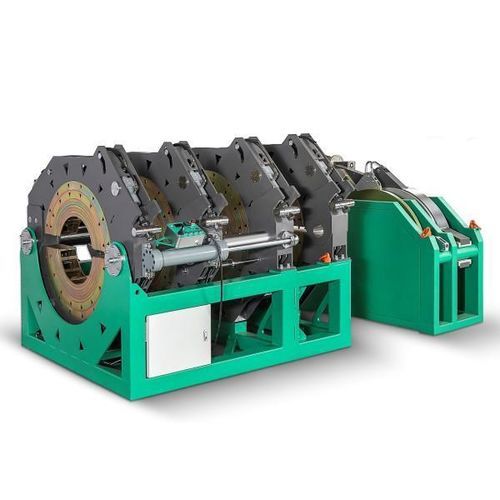

Butt welding machine SWT-V1800/1200Hmanualfor pipes380V three-phase
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- manual
- Applications
- for pipes
- Power supply
- 380V three-phase
- Other characteristics
- hydraulic, CE, high-pressure
- Power
78,000 W
- Output frequency
Max.: 0.06 kHz
Min.: 0.05 kHz
Description
Product Overview
Hydraulic Butt Fusion Welding Equipment for water, natural gas distribution and mining. MM-Tech provides specialized machines exclusively for HDPE, PP, PVDF pipe welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards.
Suitable Materials
Applications
Data Sheet
Model: SWT-V1800/1200H
Welding Range O.D. (mm): 1200-1800
Suitable materials: PE, PP, PVDF
Reducer Inserts: 1200, 1400, 1600, 1800
Power Supply: 380V, 50/60Hz
Max. Temperature of heating plate: 270ºC
Temperature deviation on surface: ≤±5ºC
Rated Power: 78KW
Certifications & Warranty
CE certification; 2-Year Quality Warranty; Technical Support available
Caractéristiques / spécifications techniques
Hydraulic Butt Fusion Welding Equipment for water, natural gas distribution and mining. MM-Tech provides specialized machines exclusively for HDPE, PP, PVDF pipe welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards.
Suitable Materials
- HDPE
- PE
- PP
- PVDF
Applications
- Potable water delivery / Water supply pipe installation
- Waste water handling / Water treatment equipment
- Mining pipeline
- Industrial fluid transfer
- Gas pipeline
- HDPE boat construction
- Aquaculture floating cages
- Agricultural irrigation
- Municipal engineering pipeline
- Geothermal heating & cooling
Data Sheet
Model: SWT-V1800/1200H
Welding Range O.D. (mm): 1200-1800
Suitable materials: PE, PP, PVDF
Reducer Inserts: 1200, 1400, 1600, 1800
Power Supply: 380V, 50/60Hz
Max. Temperature of heating plate: 270ºC
Temperature deviation on surface: ≤±5ºC
Rated Power: 78KW
Certifications & Warranty
CE certification; 2-Year Quality Warranty; Technical Support available
Caractéristiques / spécifications techniques
- Model: SWT-V1800/1200H
- Welding O.D. range: 1200–1800 mm (48″–70″ IPS)
- Suitable materials: HDPE, PE, PP, PVDF
- Reducer inserts available: 1200, 1400, 1600, 1800
- Heating plate maximum temperature: 270ºC
- Surface temperature deviation: ≤±5ºC
- Rated power: 78 KW
- Power supply: 380V, 50/60Hz
- Standards compliance: DVS 2207, ISO 21307, ASTM F2620
- Designed for high-pressure butt fusion applications in water, gas, mining and industrial projects
