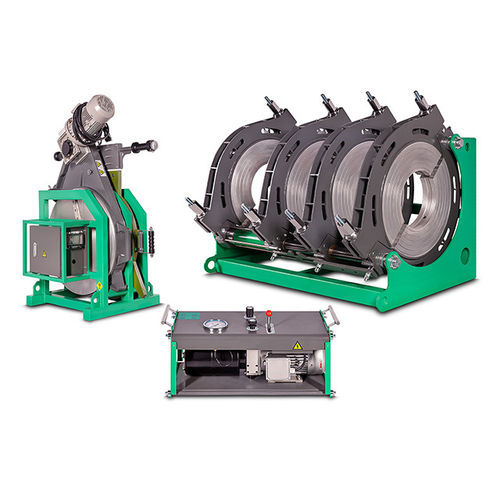

Butt welding machine SWT-V630/315H

manual380V three-phaseISO

Product overview
Hydraulic butt fusion welding equipment for potable water, wastewater, mining and industrial pipelines. MM-Tech supplies professional machines designed for HDPE, PP and PVDF pipes, compliant with DVS 2207, ISO 21307 and ASTM F2620 standards.

Additional description
MM-Tech, based in China, specializes in thermoplastic welding equipment. The SWT-V630/315H hydraulic butt fusion machine delivers reliable performance via a robust motor and an accumulator that maintains consistent pressure. The heating plate features a DuPont Teflon coating for extended service life. Available with reducer inserts to accommodate multiple diameters, it is suitable for water, gas, mining and other industrial pipeline applications.

Key features

• Circuit breaker with electrical leakage protection
• STUCCHI quick couplings for improved stability
• DuPont Teflon-coated heating plate
• Accumulator to stabilize pressure during welding
• Non-fan, high-power motor

Data sheet (table)
Hydraulic Butt Fusion Welding Machine SWT-V630/315H Specifications
Model: SWT-V630/315H
Welding Range O.D.: 315-630 mm
Reducer/inserts: 315, 355, 400, 450, 500, 560
Power supply: 380V 50Hz 3P
Rated power: 12.3 kW
Piston area: 23.06 cm²
Net/Gross weight: 618 / 729 kg

Applications

• Potable water supply networks
• Wastewater systems
• Mining and industrial pipelines
• HDPE boat construction
• Geothermal heating and cooling installations
• Water supply pipe installation
• Municipal engineering pipelines
• Water treatment equipment
• Industrial fluid transfer
• Gas pipelines
• Aquaculture floating cages
• Agricultural irrigation

Technical specifications

• Model: SWT-V630/315H
• Welding range O.D.: 315-630 mm
• Reducer/inserts available: 315, 355, 400, 450, 500, 560
• Power supply: 380V 50Hz 3P
• Rated power: 12.3 kW
• Piston area: 23.06 cm²
• Net/Gross weight: 618 / 729 kg
• Heating plate: DuPont Teflon coating
• Accumulator included to stabilize pressure during welding
• Safety: circuit breaker with leakage protection
• Quick coupling: STUCCHI quick coupling
• Motor: non-fan, high power
• Materials compatible: HDPE, PE, PP, PVDF
• Standards: DVS 2207, ISO 21307, ASTM F2620
