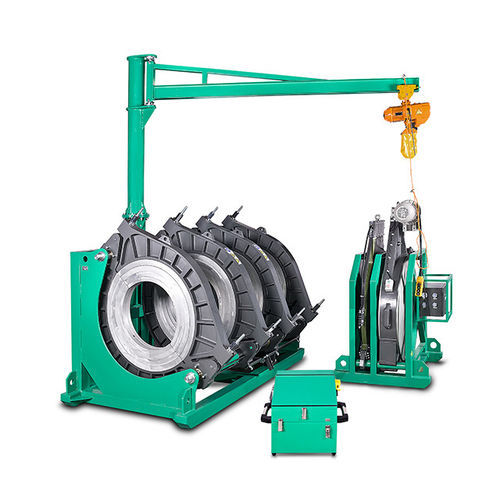

Butt welding machine SWT-V1200/630Aautomaticlarge-diameterfor pipes
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for plastic pipe, for thermoplastics, for pipes, large-diameter
- Power supply
- 400V three-phase
- Other characteristics
- precision, CNC, compact, hydraulic, with touch screen, with data logging
- Power
29,000 W
- Output frequency
50 Hz, 60 Hz
- Weld thickness
Max.: 1,200 mm
(47.2 in)Min.: 630 mm
(24.8 in)
Description
Overview
CNC Welding System automatic butt fusion welding machine designed for natural gas distribution and infrastructure work. Exclusively for HDPE, PE, PP and PVDF pipe welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards. Suited for industries such as potable water delivery, wastewater handling, municipal engineering, mining & industrial operations, HDPE boat construction, geothermal heating & cooling and general infrastructure construction.
Key Features
Data Sheet
Hydraulic Butt Fusion Welding Machine 630-1200mm Specifications
Model: SWT-V1200/630A
Welding Range O.D. (mm): 630-1200
Reducer Inserts: 630, 710, 800, 900, 1000
Power Supply: 400V 50/60Hz
Rated Power (kW): 29.00
Piston Area (cm²): 50.70
Overall N.W. / G.W. (kg): 2520 / 2780
Applications
Specifications / Technical Details
CNC Welding System automatic butt fusion welding machine designed for natural gas distribution and infrastructure work. Exclusively for HDPE, PE, PP and PVDF pipe welding. Compliant with DVS 2207, ISO 21307 and ASTM F2620 welding standards. Suited for industries such as potable water delivery, wastewater handling, municipal engineering, mining & industrial operations, HDPE boat construction, geothermal heating & cooling and general infrastructure construction.
Key Features
- Fully encased, robust and compact CNC hydraulic controller unit.
- PLC touch screen interface with RFID access technology for secure/operator convenience.
- DuPont Teflon-coated heating plate for extended service life and consistent heating.
- Support for printing welding reports with a capacity of up to 2000 records; reports downloadable via USB interface.
- Lightweight aluminum clamps and compact, easily transportable design.
- Designed for precise, repeatable automated butt fusion welds to ensure high-strength joints.
- Intended for PE, PP, PVDF and HDPE pipe materials.
Data Sheet
Hydraulic Butt Fusion Welding Machine 630-1200mm Specifications
Model: SWT-V1200/630A
Welding Range O.D. (mm): 630-1200
Reducer Inserts: 630, 710, 800, 900, 1000
Power Supply: 400V 50/60Hz
Rated Power (kW): 29.00
Piston Area (cm²): 50.70
Overall N.W. / G.W. (kg): 2520 / 2780
Applications
- Potable water supply systems
- Waste water and municipal pipeline installation
- Mining and industrial pipeline systems
- HDPE boat construction and marine piping
- Geothermal heating and cooling piping systems
- Industrial fluid transfer and agricultural irrigation
Specifications / Technical Details
- Model: SWT-V1200/630A
- Welding range (O.D.): 630-1200 mm (24"-48" IPS)
- Reducer inserts included: 630, 710, 800, 900, 1000
- Power supply: 400V 50/60Hz
- Rated power: 29.00 kW
- Piston area: 50.70 cm²
- Net weight / Gross weight: 2520 kg / 2780 kg
- Controller: Fully enclosed CNC hydraulic controller
- Interface: PLC touch screen with RFID access
- Heating plate: DuPont Teflon coated
- Traceability: Printing and USB download of welding reports (capacity 2000 records)
