- Butt welding machine
- Hebei Mingmai Technology Co., Ltd.

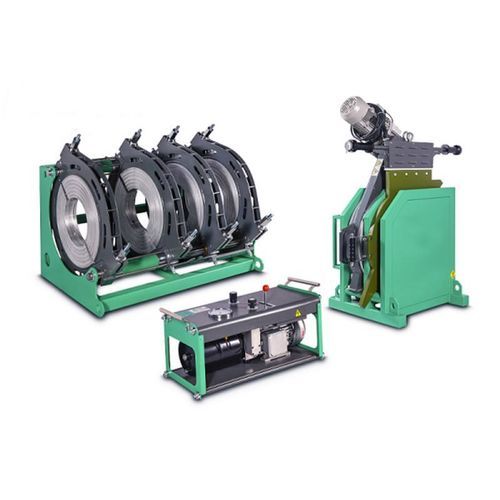

Butt welding machine SWT-V450/280SHPhot platesemi-automaticfor pipeline parts
Add to favorites
Compare this product
Characteristics
- Technique
- butt, hot plate
- Operational mode
- semi-automatic
- Applications
- for plastic pipe, for thermoplastics, for pipeline parts
- Power supply
- 380V three-phase
- Other characteristics
- hydraulic, integrated, high-pressure
- Power
Max.: 16,900 W
Min.: 8,380 W
Description
High-pressure butt fusion welding machines SWT-V series for welding thermoplastic pipes (HDPE/PE/PP/PVDF) with diameters from 280 mm to 800 mm.
Key product highlights:
Additional information:
Technical specifications (by model):
Key product highlights:
- Wide welding range: covers OD 280–800 mm depending on model to address multiple IPS sizes and project needs.
- Robust hydraulic drive: precise pressure control with working range up to 0–180 BAR for consistent weld strength.
- Teflon-coated heating plate: uniform heating, side temperature difference < 5°C; maximum plate temperature up to 320°C.
- User-oriented controls: intuitive control panel and ergonomic trimmer driven by electric drill for efficient facing.
- Safety and durability: integrated temperature sensors, emergency stop, stainless-steel junction box and high-quality hydraulic components.
Additional information:
- Compatible materials: HDPE, PE, PP, PVDF.
- Typical applications: potable water networks, wastewater systems, mining and industrial pipelines, geothermal systems, irrigation and municipal infrastructure.
- Service and warranty: 2-year warranty with professional after-sales support.
Technical specifications (by model):
- SWT-V450/280SHP
- Welding range O.D.: 280–450 mm
- Reducer inserts: 280, 315, 355, 400
- Insert types: Multi / ISO / Single
- Piston area: 22.37 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380V 50/60Hz, 3P
- Rated power: 8.38 kW
- Heater power: 5.38 kW
- Trimmer power: 1.5 kW
- Pump power: 1.5 kW
- Temperature range: max 320℃
- Packing dimensions: 1360×860×950 mm; 830×620×1210 mm; 820×370×530 mm
- Gross weight: 493.2 kg
- SWT-V500/280SHP
- Welding range O.D.: (200, 225, 250)*280–500 mm
- Reducer inserts: 280, 315, 355, 400, 450
- Insert types: Multi / ISO / Single
- Piston area: 23.06 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380V 50/60Hz, 3P
- Rated power: 10.3 kW
- Heater power: 7.3 kW
- Trimmer power: 1.5 kW
- Pump power: 1.5 kW
- Temperature range: max 320℃
- Packing dimensions: 1600×1020×1100 mm; 1040×720×1320 mm; 820×370×530 mm
- Gross weight: 611.2 kg
- SWT-V630/315SHP
- Welding range O.D.: 315–630 mm
- Reducer inserts: 315, 355, 400, 450, 500, 560
- Insert types: Multi / ISO / Single
- Piston area: 23.06 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380V 50/60Hz, 3P
- Rated power: 12.3 kW
- Heater power: 9.3 kW
- Trimmer power: 1.5 kW
- Pump power: 1.5 kW
- Temperature range: max 320℃
- Packing dimensions: 1620×1150×1240 mm; 1040×740×1480 mm; 820×370×530 mm
- Gross weight: 739.2 kg
- SWT-V800/500SHP
- Welding range O.D.: 500–800 mm
- Reducer inserts: 500, 560, 630, 710
- Insert types: Multi / ISO / Single
- Piston area: 44 cm²
- Welding pressure range: 0–180 BAR
- Power supply: 380V 50/60Hz, 3P
- Rated power: 16.9 kW
- Heater power: 12.5 kW
- Trimmer power: 2.2 kW
- Pump power: 2.2 kW
- Temperature range: max 320℃
- Packing dimensions: 2230×1460×1600 mm; 1390×1000×1660 mm; 850×400×560 mm
- Gross weight: 1290 kg
